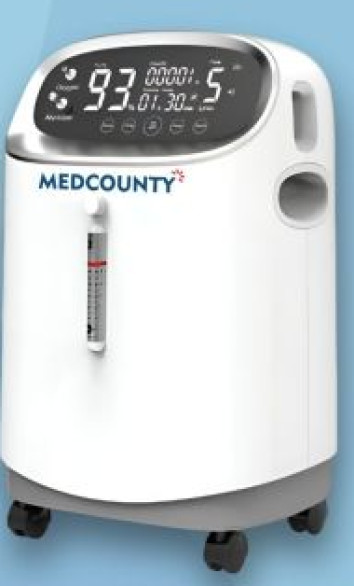

Medcounty Electric Oxygen Concentrators, Voltage : 110/220 V

Scope of application

• Can be used by medical institutions and families to prepare oxygen for oxygen supply to patients with hypoxia.

Principles of oxygen production

• This machine takes ~ 110/220V power supply as power source,air as raw material, adopts high quality molecular sieve, and produces high punity

Security system

• Current overload or connection loosening, shutdown;

• High temperature of compressor, shutdown;

• Low oxygen concentration alarm;

Normal operating environment

• Ambient temperature range: 10°C - 40°C;

• Relative humidity range: ≤ 80%;

• Atmospheric pressure range: 860 hPa ~ 1060 hPa.

• Note: When the storage environment is lower than 5°C, the equipment shall be placed at normal working temperature for more than four hours before use

Storage and transportation environment

• Ambient temperature range: -40°C ~ +70°C;

• Relative humidity range: 10%~ 100%, without condensation

• Atmospheric pressure range: 860 hPa - 1060 hPa.

• Note: The oxygenerator shall be stored in a well-ventilated room where there is no strong sunlight, no corrosive gas, and it shall be transported to avoid sharp shock and inverted recumbency.

Features

• The oxygenerator is composed of host, flow indicator and humidification cup. ( Configure the atomizing device with medical device registra tion certificate.)

• Fully plastic enclosure, safe and reliable.

• It has real voice function and more intuitive operation.

• Color screen display, dearer.

• Remote control function: The machine can be operated remotely and is easy to use.

• With accumulation function: display the total working time through the display screen.

• It has the function of timing shutdown, which is easy to use. There is power failure alarm function.

• It has the function of releasing oxygen-rich ions.

• The compressor is equipped with a thermal protector to better ensure the safety of the compressor and complete machine.

• With flow regulation function: Maximum Recommend Flow Rate: 5L/min

• It has atomization function. (Applicable to models with atomization function)

• It has oxygen concentration monitoring alarm function.

Dimension&Weight

• Overall dimension: 36×30.5×58.5 (cm)

• Net weight 17kg

Main technical indicators

• Oxygen concentration: 93%3%, > 5L:30% -90%

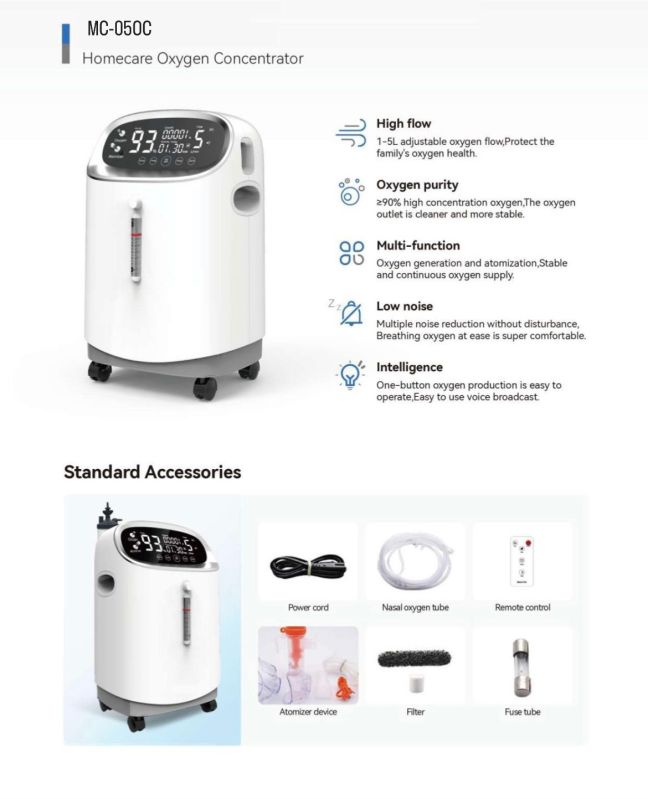

Package including

• Oxygen concentrator: 1 set

• Oxygen mask: 1 pc

• Fuse: 1 pc

• Silicone tube: 1 pc

• User manual: 1 pc

• Power cord: 1 pc

• Oxygen inhalation tube: 1 pc

• Remote controller: 1 pc
