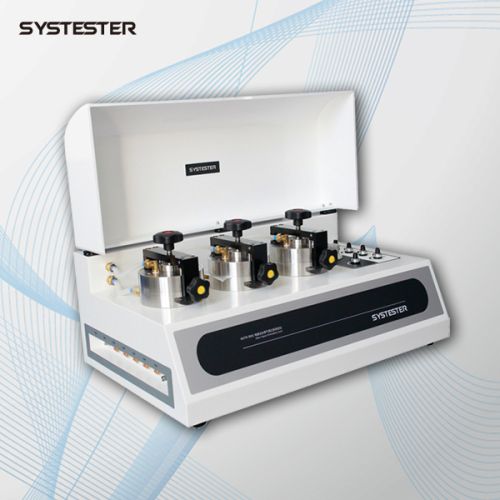

Oxygen Gas Permeability Testing Machine for OTR tester supplier

Application:
otr-1901 is based on the coulometric sensor method and applicable to the determination of
oxygen transmission rate and oxygen permeability coefficient of plastic films, sheet, paper, aluminum foils, rubber, tyre, paper-plastic composite films, battery plastic shell, solar back-sheets and many others materials, as well as tetra pak package box, peanut oils package, vacuum bags, metal three-piece cans, soft tubes for toothpaste, jelly, yogurt cups etc… package.
Main feature:
•equal pressure method
•embedded system ensures remote maintenance and upgrade
•3 diffusion cells are integrated in one instrument to separately measure 3 distinct or equivalent specimens with independent test results at one operation
•equipped with 3 water bath temperature control independently for easy to real-time control temperature during test process
•one-button test, test automatically in whole process
•high performance imported temperature and humidity sensor ensures the accuracy and repeatability of results
• high accuracy pipeline system is suitable for high, medium and low barrier materials
•high accuracy operating and control device which improves services life
•wide range automatic humidity control system adding humidity to two sides of the specimen
•support package test (optional)
•over pressure, over temperature, overload and other automatic multiple protection
•standard, proportion and intelligent test modes are available and suitable for various standard, non-standard, rapid test
•professional computer workstation software with powerful background analysis function
•traceable reference data, system log
•5 degrees user management, meets gamp5
•temperature curve, humidity curve and pressure curve display independently
•reference films for accurate vacuum calibration
