Oxygen Meter

As the name indicates Oxygen Meters and Oxygen Analyzers are for checking and analyzing the Oxygen content in the air. This comes in various models such as Oxygen deficiency meter, Oxygen meter with sensors, Explosion proof Oxygen monitor, Oxygen monitor for Vacuum, Remote oxygen monitoring sensor, etc.

An oxygen deficiency monitor gives an alarm when the level of oxygen goes below a certain level. Typically the level is 19% oxygen. This is mainly used in an atmosphere where other gases also are present such as a chemical industry, oil rigs, process plants etc. Features of our Oxygen deficiency Monitor (Part no. OXY-PA-000002) are as detailed below:

1. Measuring range of 0 to 25%.
2. The O2 meter operates from -40 to 55°C ambient temperature.
3. It has two relay outputs for connecting to external alarms, phone call dialer, etc.
4. One relay output can be programmed for 19% and the second one for 18.5%.
5. The user can connect external flashing light with an audible alarm at any distance such as 500 meters away from the room. The Alarm is wired and hence the distance is not a limitation. The user can connect to a phone dialer which will make phone calls to 8 operators.
6. There are no special installation procedures required for this O2 meter. The customer can simply plug-in the O2 meter and it starts working.

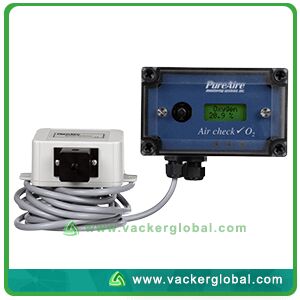

There are many applications, which requires monitoring from a distance. In these cases, our O2 monitor with an external sensor of 3-meter length will be useful. Other features of this O2 monitor are similar to the previous model OXY-PA-000002. The external sensor is capable of accurate sensing in adverse conditions containing other gases. Also, it is safe to operate in environments with quick variations in Temperature, humidity etc. It operates on 24 VDC external power supply.
