Ozone Power Supply

We are offering ozone power supply.
size:204x136x100(mm)
input voltage:ac110v-250v45-60hz
output power :15-450w (can be adjusted)
output voltage:3.5kv-4kv
working frequency:4-16khz (can be adjusted)
notable features
:
1.igbt driving, frequency can be automaticallymanual
2.slowly start up when power on,(surge current can be limited)
3.voltage exceeded protection
4.power heating exceeded protection, circuit short and off protection
5.the circuit designed for anti interference and moisture, corrosion proof

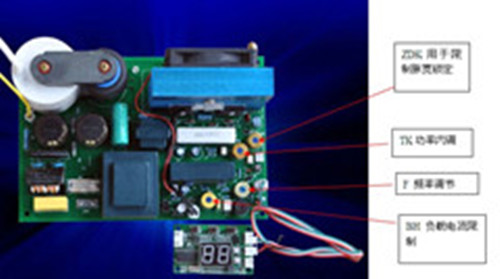

the power supply adopt multi kinds of material and multi ways of discharge ozone generator, it can be adjusted according with different limits of the ozone generator frequency and voltage; the following is the adjust steps:
1.zdk rotate to the minimum by anticlockwise, then make tk to demanded power, and during the processing, the external potentiometer rotate to maximum;
2.it is better to rotate zdk clockwise for making current less5%-10% after the needed power has been made
.
3.the generator frequency can be adjusted by f, clockwise for up, otherwise for down,
4.the generator loading current can be limited by bh, in the case of the input voltage exceeded and caused problems, bh will shutoff the power supply, same time alarmed by sound with light.
