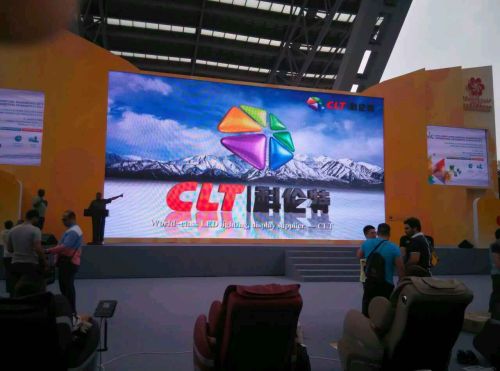

Contact SupplierWe offer P10 Outdoor DIP Full-color LED screen.
Products Parameter
Parameter
Pixel
Physical pixel pitch: 10 mm
Pixel configuration: 1R1PG1PB
Module
Module resolution: 32 x 16 pixels
Module size: 320 x 160 mm
Cabinet
Physical resolution: 96x 96pixels
Cabinet size: 960x 960 x 150 mm
Physical density: 9216pixelscabinet
Module quantity: 18pcs =3(w) x 6(h)
Material: Steel
Weight: 55Kg
Electricity parameter
Brightness: ≥ 5500 cdm2
Brightness adjusted: 100 grade by software, or by Auto-optic induced
Color processing: 14bit
Display color: 4.4 trillion
Color temperature(k): 5000—9500 (choice by user)
Physical density: 10000 pixelsm2
Whole display flatness: ≤1mm juncture
Best view distance: ≥7m
Best view angle: Horizontal ±60°, Vertical ±40°
Storage temperature: -35°C ~ +85°C Working temperature: -20°C ~ +50°C
Driving method: Constant driving current Scan: 14
Refresh frequency: ≥ 2000hz
Frame rate: ≥ 60Hz
Humidity(RH): ≤ 90~95%
Protection grade: IP65
Working Voltage: DC 5V
Power supply: AC110V, 50Hz
Average power consumption: 400 wm2
Max power consumption: 750 wm2
MTBF: 10000 hours
Screen lifetime: 100000 hours
