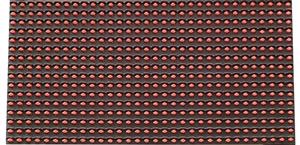

P10 Semi-red Color LED Display Module, Packaging Type : 1R

CNY 50 / 55 55 Piece

MOQ1 Piece(s)
Packaging Type1R
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are offering p10 semi-red color led display module. number item p10 1 pixel pitch 10mm 2 size of modual 160mm x 320 mm 3 resolution of modual 16 x 32 4 density of pixel 10000dots/m2 5 pixel....

Company Information

Shenzhen Huihong Optoelectronics Technology Co.,Ltd

Member Since 13 Years
Nature of Business Supplier
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering p10 semi-red color led display module.
number item p10
1 pixel pitch 10mm
2 size of modual 160mm x 320 mm
3 resolution of modual 16 x 32
4 density of pixel 10000dots/m2
5 pixel configuration red &green&blue
6 red wavelength 625±2nm
7 green wavelength 525±2nm
blue wavelength 470±2nm
8 colors 256
9 best viewing distance 10-120m
10 horizontal viewing angle 120°
11 power consumption 200w/m2
12 brightness ≥2500cd /m2
13 gray scale 16bits per color
14 color temperature 6500k
15 control method synchronization & asynchronization
16 driving method 1/8 or 1/4scanning
17 frame frequency 60hz
18 refresh frequency ≥300hz
19 working voltage ac220v/110v±10%
20 ip grade ip67(adjustable)
21 working temperature -20°c~80°c
22 mtbf >10000 hours
23 life span >100,000 hours
24 defects rate. ≤0.00001(led display line standard
