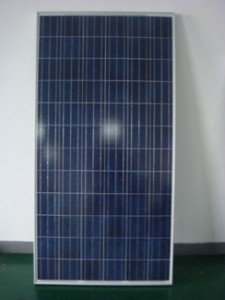

Contact SupplierWe are offering Polycrystalline Solar Module, Solar Panel, Pv Module etc.
Module Type (60 series)
Encapsulation Glass/EVA/Cells/EVA/TPT
Parameters SNM-P200 SNM-P205 SNM-P210 SNM-P215 SNM-P220 SNM-P225 SNM-P230 SNM-P235 SNM-P240
Max power Pm(W) 200W 205W 210W 215W 220W 225W 230W 235W 240W
Tolerance +/-3%
Open circuit voltage Voc(V) 35.3 35.3 36.0 36.0 36.0 36.6 36.6 37.2 37.2
Short circuit current Isc(A) 7.58 7.77 7.82 8.01 8.19 8.24 8.34 8.46 8.65
Max. power voltage Vmp(V) 28.5 28.5 29 29 29 29.5 29.5 30 30
Max. power current Imp(A) 7.02 7.19 7.24 7.41 7.59 7.63 7.79 7.83 8.0
Practical Module Efficiency η c(%) 12.2% 12.5% 12.8% 13.1% 13.4% 13.7% 14.1% 14.3% 14.7%
Dimensions (L*W*H) 1650× 992× 45mm
Net Weight (kg) 19.5
Max. system voltage (V) 1000V DC
Operate Temp. Scope -40/+85'
Resistance 227g steel ball fall down from 1m height and 120m/s wind
Warranty Pm is no less 90% in 10 years and no less 80% in 25 years
STC (Standard Test Condition: 1000W/m2, AM1.5, and 25' )
