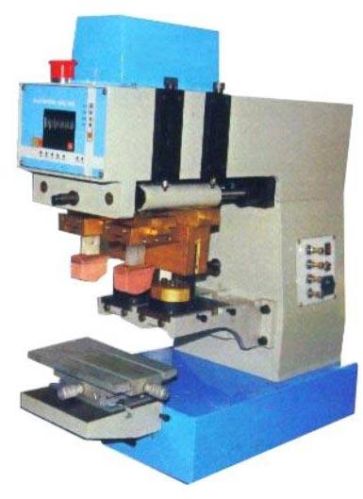

Automatic Pad Printing Machine (VK60DGF)

Automatic GradeAutomatic, Semi Automatic
Warrenty1 Year
QualityBest
MaterialCast Iron
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Automatic GradeAutomatic, Semi Automatic
Warrenty1 Year
ModelNo.VK60DGF
QualityBest
MaterialCast Iron
Driven typeElectric

Pad Printing Machine (VK60DGF) type provided by us is premium class Printing Machine available in the industry. Physical changes in the ink film on the printing plate and the pad create an etched image on the pad which is released and adheres to the substrate so that image gets printed. We provide these Pad Printing Machines in the market at the competitive prices. This Pad Printing Machine (VK60GF) type converts 2D image into 3D image.
Features

Superior raw material used
Very efficient
Precision Engineering
Affordable

Applications

Electronics
Break industries
Hand Tools
Cosmetics item
Toys
Rubber industries
Novelty items
Engineering goods
Consumer goods
Auto industries
Plastic item
Surgical item
Auto Switch & Many others

Specifications

Cliche Size	140x70x10 mm
Printing image Max.	55mm Dia
Printing Capacity Max.	1200 Stroke/Hr.
Height of object Max.	150 mm
Tempone Stoke Max.	100 mm
Forace of Pressure Max.	450 N
Control	Electo-Pneumatic
Control Voltage	24 V
Electric Supply	220 V, 50 Hz
Current Consumption	15 W
Drive	Pneumatic
Pneumatic connection	Working Pressure5-6 bar nominal width 6 mm
Air consumtation Max.	0.80 m3/hr.
Dimension (LxHxW)	650x700x380 mm
Weight	105 Kg.
