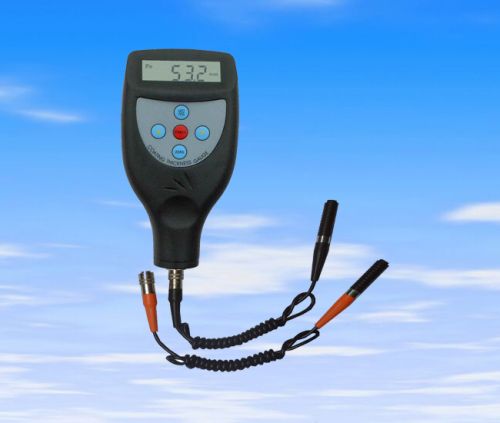

We are offering paint coating thickness gauge cm-8826fn with separate probe.
Magnetic induction: to measure the thickness of nonmagnetic coating layers on magneic substrate
eddy current:to measure the thickness of non-conductive coating layers on noferrous substrate
application:used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.
Model: cm8826fn
with separate probe(s)
operating principle: magnetic inductioneddy current (fnf)
measuring range:0-1250um0-50mil
resolution; 0.11
accuracy: ±1-3%n or ±2.5um
min. Measuring area: 6mm
min. Sample thickness: 0.3mm
battery indicator: low battery indicator
metric imperial: convertible
power supply: 4x1.5v aaa(um-4)battery
auto power off
operating conditions:0-+45℃(32℉-104℉),≤90%rh
dimensions: 126x65x27mm
weight: 81g(not including battery)
optional accessories: other range 0-200um to 15000um
