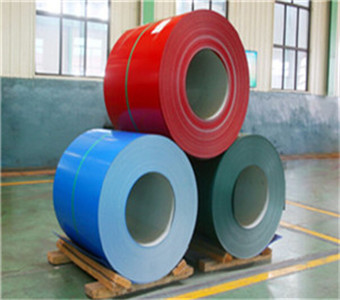

Painted Galvanized Flat Steel Plate

We offer Painted galvanized flat steel plate.
1.thickness: 0.17-0.6mm
2.width:100012001250mm
3.weight:2-7ton
4.ISO9001:2008
SPECIFICATIONS:
Name  painted galvanized flat steel plate
Type hot dipped zinc coated steel sheet, Cold rolled steel sheet, hot dipped A-Z coated steel sheet
Paint Color Based on RAL No. or customers' color sample
Paint Polyester , and your special requirement to be discussed
Paint Thickness 1 Top side: 25+-5 micron
2 Back side: 5-7micron
Or based on customers' requirement
Steel Grade Base material SGCC or your requirement
Width 1000mm,1200mm,1250mm
3 For the thickness of 0.14-0.34mm, the width can be 1000 or 1200mm
4 For the thickness of 0.35-0.60mm, width can be 100012001250mm
5 For the thickness of 0.61-1.00mm, the width is 1000 mm only.
6 For the other width of your project, it can be discussed.
Thickness Range 0.17mm-1.50mm
Zinc Coating Z60-Z275
Coil ID 508mm or 610mm
Coil Weight 3-10MT, or as per customers' requests
Technique Cold Rolled
Surface Protection PE,PVDF,SMP,HDP,etc
Surface Treatment Galvanized,Chromated,UnoiledOiled,Bright Finished,Spangle,Fingerprint Resistance.
Application General Use,Roofing, Corrugated Roofing Making,Outside of the buildings,
Structure,Tile Row Plate, Wall, Deep Drawing and Deep Drawn
Packaging & Delivery
Packaging Details:standard packing for sea freight
Delivery Detail:15 days after received the deposit
