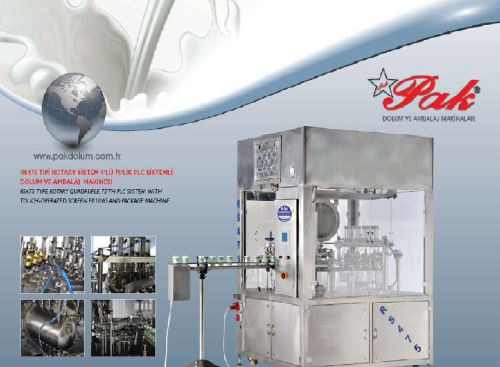

Pakdolum Bottling Machines Cs200

Type : Crs200
type of Bowl : Plastic Bootle
product Tank : Stainless Steel Boiler Funnel Shaped
filling System : Flowmeter System
filling Cap : Pneumatic System with Nozzle
filling Grammage : 250 – 1000 Gr
filling Unit : Composed of Two Actuators.
filling System Acts According to Machine Speed
capacity : Depends On Customer Demand
capping and Squeezing Unit : Automatic By Pneumatic System
machine Block : Aisi 304 Stainless Steel
machine’s Mold Size : Produced per Sample Container
electrical Demand : 380 V, 3 Phaze, 50 Hz
pressured Air Demand : 6 Bar – Max 1100 L/min
electricity Consumption : Max 3 Kw / Hour (average) – 380 V
features
all of Our Products are Produced By the Industrial
rotary-conveyor System Liquid Filling and Packing
machines Manufactured in Our Factory Which
they are Capable of Handling Filling and Capping
operations in Different Bottle Sizes in Different
grammages for the Bowls in Different Geometrical
shapes. It Provides Simplicity for Handling And
working Conditions that is Capable of Removable
and Mountable Features Comply with the Working
conditions. all of the Material of Our Machines
produced in Different Types and Filling Numbers
that Has the Options of Bowl Washing and Drying
units is Aisi 304 Quality Stainless Steel. Other
connecting Elements, Bedding Materials, Electric
equipments and Motors, Reducers, Plungers And
other Equipments Used for the Construction of Our
machine are Selected Based On the Din Norms That
comply with the Standards.
product Applications
our Machine Used in Food and Dairy Industry,
process Food Industry and Industrial Production
field Provide Service for a Very Wide Range Of
processes Up to Agricultural-chemical Fluids.
note: Some of the Units May Be Optional Described and Shown In
picture. for Detailed Information You May Contact with Our Sales
