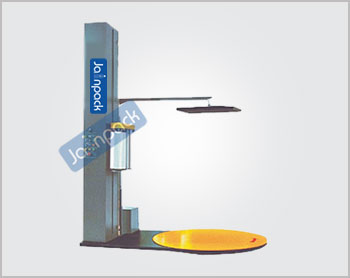

Pallet Stretch Wrapping Machine, Phase : Single Phase

Get Latest Price

ModelPallet Stretch Wrapping Machine SPSW 2100
Power (kw)Turntable: 0.75 Film, Carriage: 0.4; Steel Tower: 0.37
Electrical requirement ( V/Hz)220 / 50
Film CarriagePre- Stretch Type
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Weight (kg)800 kg
Wrapping Efficiency (loads / hour)20 – 40
Max Wrapping Size (L x W x H) (Max) (mm)(500 -1200) x ( 500 -1200)
Top Plate DevicePneumatic Direct Transmit, Orbit Top Plate
Film CarriagePre- Stretch Type
Power (kw)Turntable: 0.75 Film, Carriage: 0.4; Steel Tower: 0.37
Control SystemPLC
Machine Dimension (mm)L Type: 2745 x 1650 x 2700 /H Type : 2745 x 1650 x 3300
Turntable Diameter (mm)Ø : 1650 / H : 85
Turntable Speed (rpm / min)3 – 12
Electrical requirement ( V/Hz)220 / 50
ModelPallet Stretch Wrapping Machine SPSW 2100
Turntable Loading (max) (kg)2000

Features:
• Designed to wrap stretch film around a loaded pallet
• Film provides extra support while transporting
• Wrapping type and times can be designed
• The ramp is optional
• Has Photo-eye pallet height sensor
• Reinforce wrap allow more wrap on same location
• Over-wrap provide more wrap over the top of loads
• Powered pre-stretch film carriage up to 300%
• Film delivery variable speed by separate AC Drive Motor & Separate inverter
• Heavy duty double-chain carriage lift, calm and safety
• Carriage door opens for effortless roll change and thread film
• Film dancer-bar control film output
• Safety stop to avoid foot crush
• Hinged mast for easy handling
• Front & rear Forklift transportable
