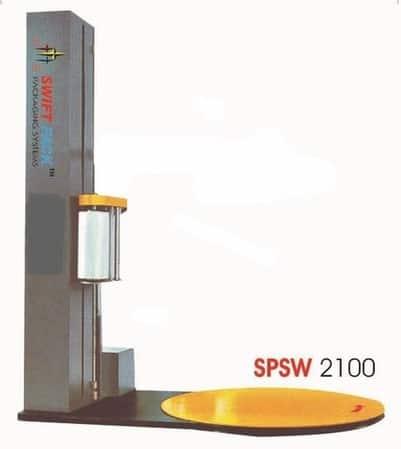

We offer newly constructed Pallet Stretch Wrapping Machine, which is used for packaging commodities items in cartons. Generally plastic is used as the packaging material in this automatic electric machinery. It is integrated with a PLC control panel, which provide the users with quick access to buttons which control the overall operation of pallet wrap machine. By wrapping the pallets with stretch tapes provide the products more support while their transportation and storage. Furthermore, using our machine you can easily separate and identity the wrapped loads. Its general application areas include building material, chemical industry, drinks, electronic industry, foodstuff, home appliances, paper making, etc. We are always concerned about research and development activities in this field. We keep ourselves updated with the changeovers so that the same can be incorporated in our pallet wrapping machines.
Â
Machine is using a standard type of stretch film packaging material for creating a hard to tear, resistance, waterproof cover over the loads. The film is recyclable. Specification:width: 500 mm,thickness:20-25 microns,length: 1500 meters, weight: max: 16 kg,stretchable,one side sticky, transparent or colored.
 Function of the machine:-
Control System
   PLC control
Photo-eye auto-height sensing pallet height Â
Separate top, bottom & up-down Wrap Counter options
Overwrap time is up to create an overwrap
Reinforce wrap times is set to better secure 2 loads placed on top of each other
Film Tension Control adjustment on the panel
Separate start, pause and emergency stop buttons
Power indicator
Manual carriage up/down
Variable Turntable Speed
Carriage up/down speed control
Manual/automatic exchangeable
Turntable -
1650mm Diameter Structural steel plate
85mm Height floor to top of turntable
Turntable drive -
   0-12rpm variable turntable speed by frequency changer
   Position turntable alignment
   Soft start
Film carriage -
  Powered pre-stretch system up to 250% to min film consumption
Film delivery variable speed by separate DC Drive Motor
Electronic film tension control adjustment on panel
Film dancer-bar with variable speed output
Â
Film carriage Drive -
  Heavy duty double-chain carriage lift, calm and safety
  Film carriage variable speed by frequency changerÂ
Model |
SPSW 2000 |
Wrapping size(L*W) |
(500-1200)mm*(500-1200)mm |
Packing height |
L type:(500-2000)mm |
H type:(500-2400)mm |
|
Y type:(500-higher than 2400)mm |
|
Packing efficiency |
20-40 loads/hour |
Turntable speed |
0-12rpm |
Turntable diameter |
Diameter:1650mm height:85mm |
Turntable loading(max) |
2000kg |
Up-down frame |
Double- chain, Up-down speed variable |
Film carriage |
Pre-stretch |
Control system |
PLC |
Machine weight(max) |
700kg |
Machine size |
2650mm*1650mm*2400mm |
Packing size |
2650mm*1650mm*700mm |
Electrics |
Single-phase 220V/50Hz |
Power |
Turntable:0.75kw,film carriage:0.3kw,up-down:0.4kw |
