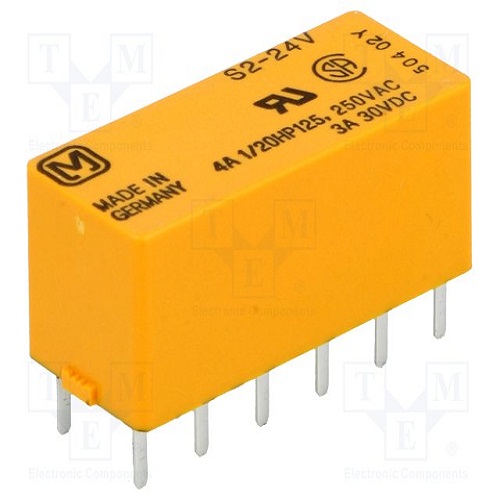

We are supplier 4A 24VDC DPST-NO, DPST-NC Non Latching S Series Power Relay - S2-24VDC in india.
Features of Non Latching Power Relay:-
1. High reliability and long life
2. Ability to provide wide-ranging control
3. Latching types available
.4. Wide variety of contact formations available
5. Low thermal electromotive force relay.
6. DIL terminal array
Applications of Non Latching Power Relay:-
S Series Power Relay is used inTelecommunications equipment, data processing equipment, facsimiles, alarm
equipment, measuring equipment.
Technical Details:-
Manufacturer PANASONIC
Relay type electromagnetic
Contacts configuration SPST-NO x2 + SPST-NC x2
Rated coil voltage 24V DC
Contact current max. 4A
Switched voltage max 250V AC
Relay variant miniature
Coil resistance 2.85k
Operating temperature -40...65
