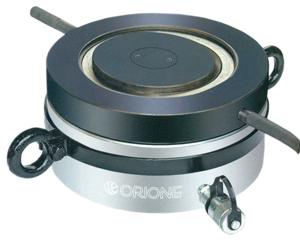

PANCAKE JACKS THREADED RAM

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Used in low clearance confined area. Ideally suited for precision lifting, alignment of machinery, heavy structurea and girders. Mechanical load holding indefinitely. Caution - Provide a level and soild support for entire jack base area since the ram guide length is small.

View More Details

Send Enquiry

Company Information

Orione Hydropower

Vashi, Navi Mumbai, Maharashtra

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Cylinder Capacity (ton)	Stroke (mm)	Model	Effective area (cm²)	Oil cap. (cc)	Closed height (mm) A	Cylinder OD (mm) B	Bore dia (mm) C	Ram dia (mm) D	Saddle dia (mm) E	Wt. (Apporx.) (kg)	Suitable Pump
50	50	OLTVL 50-50	78.5	393	125	140	100	100	95	15	OHP1P4-2-2.2
100	50	OLTVL100-50	153.9	770	140	175	140	140	125	27
150	45	OLTVL 150-45	227.0	1022	150	220	170	170	160	46
200		OLTVL 200-45	3142	1414	155	255	200	200	180	63	OHP-2P4-2-5
250		OLTVL 250-45	380 1	1710	160	280	220	220	200	77
300		OLTVL 300-45	452.4	2036	170	310	240	240	220	100
400		OLTVL 400-45	5726	2577	180	350	270	270	250	136
500		OLTVL 500-45	706.9	3181	195	385	300	300	290	178
