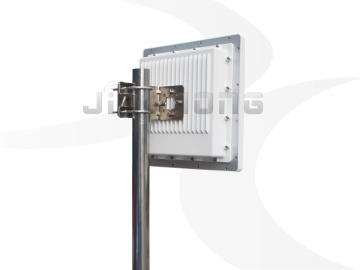

Jinghong Panel Antenna

we are offering panel antenna. jhp-2327-18v20e is a bridge antenna combined high gain and 20â°beamwidth,itâ��s suitable for outdoor applications in the 2.3-2.7ghz band.cpe can be put in enclosure.
� ip66 waterproof level
� uv protected abs radome
� integrated enclosure
� compatible with vertical or horizontal polarization
� rohs compliant
electrical
model jhp-2327-18v20e
frequency range 2300-2700 mhz
gain 18 dbi
vswr �1.5
3db beam-width h-plane 20â°
3db beam-width e-plane 20â°
polarization vertical or horizontal
upper side lobes db
front to back ratio �25 db
maximun input power 100 watt
impedance 50 î©
lightning protection dc grounded
mechanical
connector n female
inner space 233ã�233ã�45 mm
antenna dimension 305ã�305ã�80 mm
weight 3.0 kg
radome material uv protected abs
enclosure material aluminium die cast
mounting mast diameter ã�40~ã�60 mm
operating temperature -40â° c to +65â° c
rated wind velocity 216 km/h
tips: the enclosure is suitable for routerboard of mikrotik rb711 , rb411 , rb433, rb450 , rb493.
