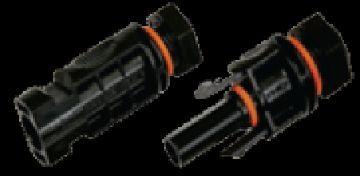

Panel Connector

Safety ClassII
Rated Current25 A(2.5 mm2), 30 A(4.0 mm2, 6.0 mm2)
Contact MaterialCopper with Tin Plating
Suitable Cable2.5 mm2/4.0 mm2/6.0 mm2
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Contact Resistance<0.5 Nm
Rated Current25 A(2.5 mm2), 30 A(4.0 mm2, 6.0 mm2)
Test Voltage6 KV (50 Hz)
Operating Temperature-45°C to 90°C
Contact MaterialCopper with Tin Plating
Suitable Cable2.5 mm2/4.0 mm2/6.0 mm2
Safety ClassII
Brand NameElmex
Insertion Force≤50 N
Product CodePanel Connector
DescriptionSpecification
Rated Voltage1000 V DC
Rated Voltage1000 V DC
Withdrawal Force≥50 Nm
Locking SystemSnap In

To cater to the requirement of panel mounted connection, ‘elmex’ has developed solar panel connectors EMPVPCM4 and EMPVPCF4. ‘elmex’ panel connectors are designed for use in connection of photovoltaic devices like panels, inverter, string boxes, etc. ‘elmex’ panel connector is provided with hexagonal nut for fixing and tightening it on the mounting surface: a rubber o-ring is kept between panel surface and the wall of the photo voltaic devices. ‘elmex’ connector has mating compatibility with ‘elmex’ make straight connector EMPV4.
