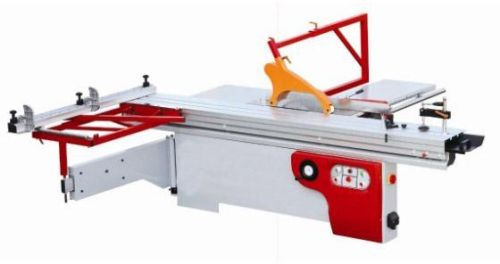

Panel Saw, Brand Name : UNITED ASIA

₹ 2.26 Lakh / 3000 3000 Set

MOQ1 Set(s)
Brand NameUNITED ASIA
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We are offering panel saw. Technical data: dimension of sliding table 3200mm gross cutting capacity 3200mm width of cutting between saw blade and rip fence 1250mm main saw blade....

Company Information

Member Since 12 Years
Nature of Business Exporter
Year of Establishment 1990

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering panel saw.
Technical data:
dimension of sliding table 3200mm
gross cutting capacity 3200mm
width of cutting between saw blade and rip fence 1250mm
main saw blade diameter 300mm
diameter of guide shaft spindle 40mm
height of main saw cutting 80mm
speed of main saw spindle 4000-6000rpm
spindle diameter 30mm
height of cutting of main saw blade at 45° 55mm
degree of cutting 45°
main motor 5.5kw
diameter of scoring saw blade 120mm
speed of scoring saw spindle 8000rpm
diameter of scoring saw spindle 20mm
scoring motor 1.1kw
overall size 3200*3100*985mm
seaworthy package size 3.0cbm
