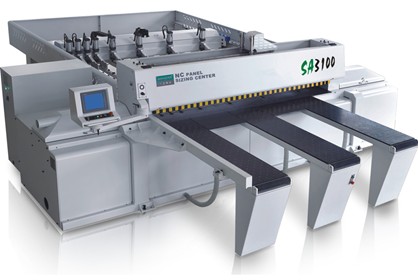

Panel Saw

We are offering panel saw.
lcd touch screen control (chinese&english interfaces);
air cushion front loading table;
saw carriage adopt heavy-duty gears and racks to enable strong and table cutting;
panel pusher is driven by servo motor to ensure high accurate positioning;
cnc system controll management;
independent side thruster device can automatically positioning the cross cut;
side thruster device is driven by servo motor with nc positioning.
main technical data
sa3100s
max cutting size
100*3200*3200mm
mainsaw motor
25hp (50hz)
scoring saw motor
2hp
pusher motor
3hp
quantity of clamper
8pcs
max cutting speed
60m/min
max feeding speed
80m/min
diameter of main saw blade
φ400mm
rotation speed of main saw blade
4300rpm
rotation speed of scoring saw blade
5900rpm
diameter of scoring saw blade
φ200mm
working pressure
6kg/cm2
net weight
6000kg
overall dimensions (l × w × h)
5900×2000×1800mm.
