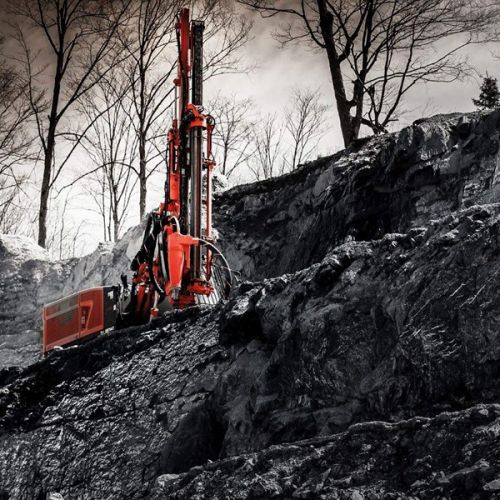

Pantera DP1500i Drill Rig

CertificateROPS and FOPS
Drill rod / tube diameter51, 60, 87 mm / 2", 2 3/8", 3 ½"
Recommended hole diameter102 - 152 mm / 4"-6"
Flushing air capacity14 m3/min, up to 10 bar (depends on rock tools)
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

EngineCaterpillar C11,261 kW (350 hp) / 1 800 rpm (Tier3) Caterpillar C13, 287 kW (385 hp) / 1 800 rpm
Hydraulic rock drillHL1560T, 33 kW (44 hp) RD1635CF, 35 kW (48 hp) as option
Operator cabinErgo cool
Drill rod / tube diameter51, 60, 87 mm / 2", 2 3/8", 3 ½"
Flushing air capacity14 m3/min, up to 10 bar (depends on rock tools)
Recommended hole diameter102 - 152 mm / 4"-6"
CertificateROPS and FOPS

Our Pantera DP1500i Drill rig is an intelligent, hydraulic, self-propelled, crawler-based surface top hammer drill rig.
Fully equipped, the new generation rig produces a range of drilling information including the condition of the drill and the work performed. Clever drilling parameter set up, an advanced ROPSFOPS certified safety cabin, excellent visibility and step by step trouble shooting instructions, make drilling with the Pantera DP1500i Drill rig a pleasure.
The Pantera DP1500i top hammer drill rig is designed to bring a true productivity boost to surface top hammer drilling in quarries and mines. Based on the well-known DPi characteristics, the reformed drill rigs feature improvements that provide true power, fuel economy, more uptime hours and smooth flow of operation.
