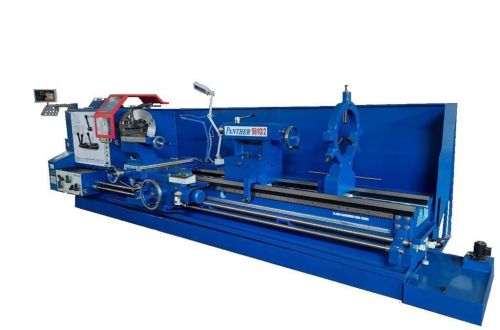

Panther - Extra Heavy Duty All Geared Lathe Machine

MaterialMetal
UsagePrecision Tool Rooms
TypeAll Geared Lathe Machine
SpecificPurposeVery Specific Purposes
Supply TypeSupplier
Preferred Buyer Location India only

Product Details

TypeAll Geared Lathe Machine
MaterialMetal
UsagePrecision Tool Rooms
RangeWide Range
SuitableForConventional Lathes
SpecificPurposeVery Specific Purposes
SpecialFeaturesExtra Heavy Duty

We deal in a very wide range of Lathe machines.Our range consists of Conventional Lathes, cone pulley belt lathes, All Geared Lathes, Roll turning lathes, CNC Lathes, precision tool room lathes, general purpose lathes, pipe threading lathes and SPM lathes for very specific purposes.Our Lathe machines are most suited for Precision Tool Rooms, Roll turning applications, PVC pipe threading, and a host of other turning applications.

Particulars/Model	4610	5610	6610
Type of Bed	Flat & V Guideways with Gap Bed
Swing Over bed	900 / 980 mm	1100mm	1300mm
Width of Bed	555mm	655mm	755mm
Height of Center	430/ 500mm	560/ 600mm	660mm
Swing over Cross Slide	570/ 650mm	770mm	950mm
Swing in Gap	1310/ 1390mm	1510mm	1710mm
Length of Gap infront of Face Plate	330mm	330mm	330mm
No. of Spindle Speed	8	8	8
Spindle Speed Range	20 - 275 RPM	20 - 275 RPM	16 - 195 RPM
Taper in Spindle Sleeve	MT-5	MT-5	MT-5
Spindle Bore	104mm	104mm	104mm
Spindle Nose	Bayonet Size 11	Bayonet Size 11	Bayonet Size 15
No. of British Threads	28	28	28
Range of British Threads	1.5 to 22 TPI	1.5 to 22 TPI	1.5 to 22 TPI
No. of Metric Threads	28	28	28
Range of Metric Threads	0.75 to 16 Pitch mm	0.75 to 16 Pitch mm	0.75 to 16 Pitch mm
No. of Feeds	28	28	28
Range of Longitudinal Feed	0.20 to 3.0 mm/REV	0.20 to 3.0 mm/REV	0.20 to 3.0 mm/REV
Range of Transvers Feed	0.033 To 0.50mm/REV	0.033 To 0.50mm/REV	0.033 To 0.50mm/REV
Lead Screw Diameter/Pitch	50.8mm / 2TPI	50.8mm / 2TPI	50.8mm / 2TPI
Tail Stock Spindle Diameter	95 mm	105mm	115 mm
Taper in Tail Stock Quill	MT-5	MT-6	MT-6
Cross Slide Travel	430mm	560mm	660 mm
Compound Slide Travel	230 mm	230 mm	300 mm
Tail Stock Sleeve Travel	220 mm	310 mm	410 mm
Tool Post Square	200x200mm	200x200mm	230 x 230 mm
Tool Shank Size	38x38mm	38x38mm	38x38mm

Model	4610 - 5610 - 6610
Model	1			2			3			4			5
Length of Bed (mm)	3750	3950	4270	4750	4950	5270	5750	5950	6270	6750	6950	7270	7750	7950	8270
Admit between centres (mm)	2000	2000	2000	3000	3000	3000	4000	4000	4000	5000	5000	5000	6000	6000	6000
Net weight (kg)	6250	7750	10250	7300	9300	11300	9500	11500	13500	11200	13700	15200	12800	15300	16800
Motor (HP)	15	15	20	15	15	20	15	15	20	20	20	25	20	20	25
