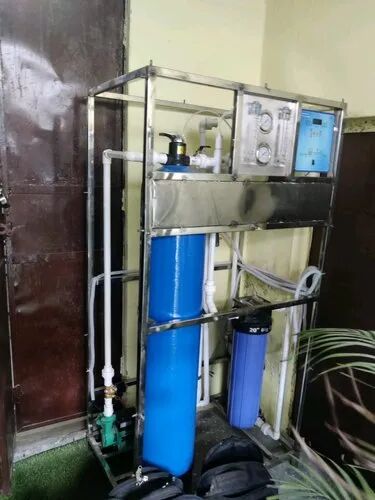

Paolo Industrial RO Plant

500 Liter Technical Specification of Proposed RO plant under CSR works:

• RO plant capacity : 500 LPH
• Raw water pump : 1 Nos.@3.5 kg/cm2 pressure
• Pump flow rate : 1200 ltrs/hr make
• CRI/Texmo vessel specification : 10" dia X 54"
• HOS Filter medias : Pebbles, sand, silex & activated carbon
• Activated carbon filter vessels : ACF1054 (make: Aventura / Pentair)
• Multiport Valve : 25
• NB-Fully Automatic cartidge filters : 2 Nos. (5 & 10 Micron)
• PP-Jumbo wound High pressure pump : 1200 ltrs/hr- SS304
• RO skid : SS Fabricated
• Skid 1 No. flow meter : 2
• Nos pressure gauge : 3
• Nos electrical cables : 1
• Lot control panel : 1
• No-Auto Panel with low pressure switch RO Membrane : 2
• Nos-4" (Hydraunatics/Filmtec/GE) Membrane housing : 1 X 2 -1
• No RO Pressure Vessel : 400 PSI-
• Advance Composite Float Switch (Low & High) : 1
• No Dosing Systems : 2 Nos-Anti Scalent & pH Bo

UV Systems : 1 No-500 ltrs/hr Work under Contractor Scope:

• Collection tank to store treated water- stainless steel make
• Raw water Pipeline from inlet point given by BHEL Under BHEL Scope:
• All Civil works like plant room & drains etc
• 230V 1 ph. 50 Hz electrical supply at 1 point near the RO plant
• Raw water pipeline up to the incoming/inlet of the plant
• Reject/ Back wash effluent/plant drains will be disposed by BHEL
• All storage
