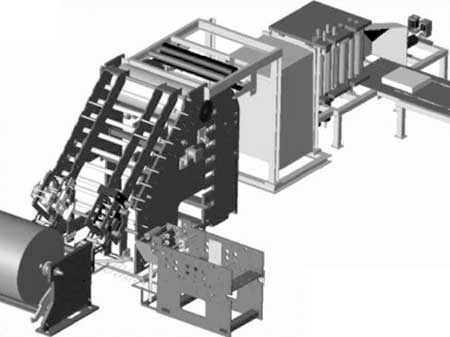

Paper Bag Making Machine

We provide exclusively designed Paper Bag Making Machine known as BM-01. We have developed this machine after a lot of research and testing. The Paper Bag Making Machine BM-01 manufactured by us is invested with new techniques and works without any manual assistance. The paper bags produced by the machine are without joints that ensures complete resistance in humid situations. In comparison to other paper bag machines available, this machine offers numerous benefits and has low cost. We are recognized as one of the prime Manufacturers and Exporters of Paper bag making machine in India.

• Fast size change facility
• Available in numerous sizes and specifications : 6 to 40 cm of bottom with changeable and length and height up to 50 cm
• Offers full continuous bottom bags without joints
• Highly reliable
• Protected by international patent pending WO 2009122451

• 16MT x 4 x 2,10 h

• Iron : Steel and only Iron

• Compact size
• Doubled production speed (up to 250 pieces per min)
• Automatic packing & stacking
• Easy to operate
• Low maintenance cost
• Reduces time of production
• Eco-compatibility
• Saves paper up to 6.5%

• Production Speed up to 250 Bags/min (variable on sizes)
• Size changeover simple and rapid in some case totally automatic
• Technology Gearless in all 20 shafts of work
• Final Cut-off with cut of scissors
• Automatic conveyor for single packs of bags on the top (number ofpieces per pack can be selected)
• Reel dimension :
  • Max Width 1250 mm
  • Max Diameter 1300 mm

• Tension Controller with brake through load cells
• Automatic Control of the alignment of paper
• Supervisor display for size change, production control and diagnostics.
• Remote Control for Assistance and Technical support on-line.
• Transversal vinyl glue applicator with automatic loading.
• Hot-melt Glue Applicator Group with proportional variation from 18 kg/hour
• High pressure power source of vinyl glue with electronic regulation.

• All Heights from 10 to 50 cm
• All Bottom Widths d from 5 to 20cm (to 40 cm optional)
• All Lengths from 21 to 100 cm
• Substance of used paper from 70 gr to 125 gr.

• Fixed steps 9,52 and 12,7 cm width (variable step is optional)
• Handles Height from 8 to 15 cm variable automatically
• Diameter of the used twisted paper cord from 4 to 6 mm ( supplied by you )
• Patch length 19,05 cm
• Substance of patch paper from 75 to 90 gr.

• Width max 3 mt.
• Height max 2, 5 mt.
• Length max 16 mt.
• Encumbrance lateral area of handle making unit and glue unit 4 mt x 4 mt.
