Product Details
Company Details

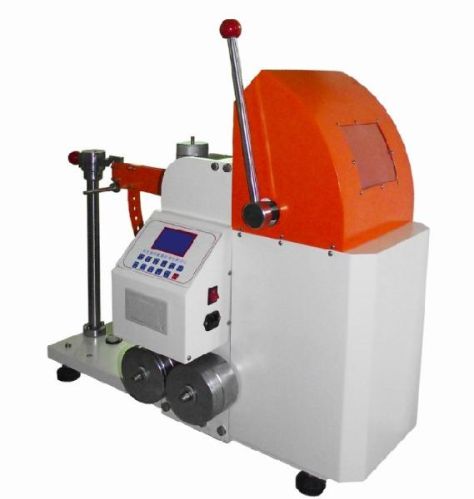

Paper board puncture tester measures the energy required to puncture board with a pyramidal head affixed to a pendulum arm. This energy includes the energy to tear the material and the energy to bend it out of the way of the point.
paper board puncture tester technical data
test range: (1~48)j
four gears: a ＜6j; b＜12j; c＜24j; d＜48j;
resolution: 0.001j
pressure head: (100±2)kpa
friction sleeve resistance: ＜0.25j
pyramidal head: edge length 60mm×60mm×60mm height 25±0.7mm
dimension: 900mm*410mm*800mm
weight: 110kg
paper board puncture tester standards
iso 3036, astm d 781, din 53142, tappi t 803 , gbt 2679.7, qbt 1664
