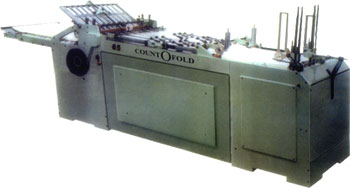

PAPER COUNTING AND FOLDING MACHINE

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

MAIN FEATURES Feint ruling in 2 colour. Can cut required size of paper by charging gears Static Eliminator to neutralize paper Jogging arrangement Counting provided Speed increase and decrease in possible Self loading reel stand No necessity of oiling in gears High Pile Delivery Ruling disc and Spacer are of standard machine Imported A.C Very Speed Control provided with inching facility Speed about 100 to 125 mtrs. per minute depending on quality of paper . Paper Sensors for auto stop.

View More Details

Send Enquiry

Product Details

TECHNICAL DATA



Maximum Sheet Size	:	890 x 890 mm
Minimum Sheet Size	:	400 x 350 mm
Folding Capacity	:	2 to 12 sheets depending upon condition and paper
Mechanical Sheed	:	Maximum 180 to 200 sheets per minute.
Pile Stack Capacity	:	10 to 12 Reams
Power Required	:	Total 2.5 H.P / 3 phase / 440 V
Floor Space Required	:	1400 x 3600 x 1250 mm
Machine Weight	:	Approx. 2000 kgs.

HEAVY DUTY STICHER

Most useful for Stiching of Notebooks, Books, all kind of megazines, Bus Tickets and Currency Notes etc.

TECHNICAL SPECIFICATIONS

Size of Machine	"1"	25.4 mm
Gross Weight Approximate	350 kgm	875 Lb.
(Placked in one case)
Net Weight	200 Kgm	500 Lb.
(Without Packing)
Space Required	"32" x "28"	81 cm x 71 cm
Speed
Stiching Capacity	2 Sheet to 300 Sheets	"005" to "1" 2 min to 25.4 mm
Motor	1 H.P
	(Single Phase or Three Phase)
Wire Required
For 2 Sheets to 60 sheets	24 S.W.G
For 61 Sheets to 120 sheets	22 S.W.G
For 121 Sheets to 150 sheets	20 S.W.G
