DESCRIPTION :

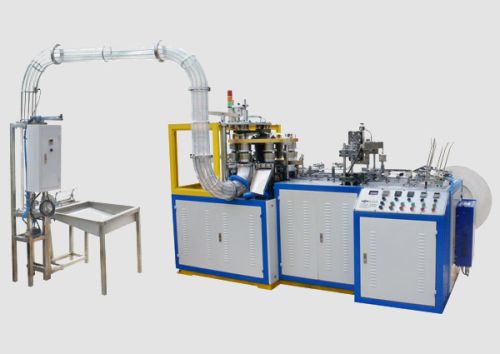

JKPLC-1000 Paper Cup Forming Machine is multi-station automatic machine. It has continuous automatic procedures like feeding, sealing, oil -filling, washing, heating, knurling, curling,unloading, etc. It is ideal equipment for producing paper testing-drinking cups, market cups, advertising cups, etc. It is widely used for hot drink and beverage. If you want to make two-side ( double) PE coated paper cups, we recommend you to use JKPLC-1000 or JPC-Q7 ultrasonic paper cup forming machine.
FEATURES :
1) The main-frame of the machine is an incline. And the incline can help the cups easily drop into the plastic holes, the rate of which goes up to 99.99 %.
2) The shape of the head is oblate, which can seal the cups easily. It is much better than that is round.
3) The machine sends the bottom paper up to the cup automatically and adjusts itself because of a spring.
| Model | DB-C16 | DB-2C!6 | DB-C18 | DB-2C18 | DB-C22 | DB-2C22 |
| production capacity | 45-55pcs/min | 40-50pcs/min | 30-40pcs/min | |||
| required paper | 150-250gsm one side PE coated paper | 150-380gsm two side PE coated paper | 150-250gsm one side PE coated paper | 150-250gsm two side PE coated paper | 150-250gsm one side PE coated paper | 150-250gsm two side PE coated paper |
| container capacities | (A)Ф50-90mm;(B)45-115mm; (C)Ф35-64mm;(D)4.5-10mm | (A)Ф60-128mm;(B)45-135mm; (C)Ф50-97mm;(D)4.5-10mm | (A)Ф60-128mm;(B)45-180mm;(C)Ф50-97mm;(D)4.5-10mm | |||
| Air supply requirement(provided by customer) | working pressure:0.4-0.6Mpa gas volume:0.5m3/minute | |||||
| total power | 220v 50hz 3.8/8kw or 380v 50hz 3.8/8kw(variable-frequency control) | |||||
| weight | 1300kg | 1550kg | 1600kg | |||
| overall dimensions | 2450×1200×1750mm | 2450×1200×1750mm | 2700×1300×2000mm | |||
