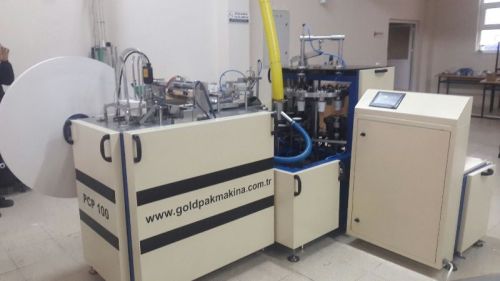

Paper Cup Machine, Brand Name : Goldpak Makina

Pcp100 paper cup machine general specifications
the paper cup machine which the gold paketleme makina® produced with high-technology, turns the single side or double side (optionally) lamination paper into paper cup.
the density of the lamination paper is 170-350 grm² ±18 grm² and convenient for both single and double side production. It produces paper cup with maximum error rate of % 0.5. The production of paper cup changes according to the paper quality and the producing capacity is 80-90 pcs. minute.
1. technical specifications
specifications values
product code pcp100
production capacity 80-90 pcs.min
heating power 8 kw
motor power 1,5 kw
total energy power 14 kw
weight of machine 1300 kg
cup collecting collecting to single point with blowing system
machine operators for 6 machines 2 persons
sealing system 8 point sealing
commanding system plc control system
production monitoring plc reporting system
length of machine 1800 mm
width of machine 4000 mm
height of machine 1100 mm
