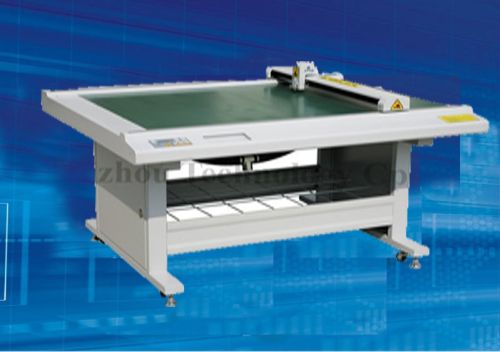

Paper Cutting Machine, Brand Name : RUIZHOU, Packaging Type : Gray

We are offering paper cutting machine
environment protection function,easy to learn and operate,light weight,small volume,with high quality,best choice for you!
what are the benefits?
1. Easy to use
�ruizhou tables are easy to install and simple to set-up and use. The table is programmed for use with ruizhou recad software, which apart from the manual adjustment for the depth of the knife, will reduce the need for hands-on setup of the table.
2. Saves time and money whilst improving quality
�eliminates the cost and time you spend cutting paper patterns and making brass bound pattern boards.
Â�¢greatly reduces the time taken to hand cut sample and graded paper patterns.
Â�¢consistent accuracy throughout, utilizing the ruizhou recad software, any modifications to the pattern can be re-cut quickly and efficiently.
Â�¢reduces your lead times for samples, short production runs and overall pattern development time for both sampling and production, helping you to provide that 'quick response' your customer demands.
3. Flexible
�when used with ruizhou recad software, ruizhou tables are designed to work in the background, cutting and/or plotting pattern pieces whist you continue to develop other 2d patterns.
what are the features?
1. Tool head
�a dual function tool head incorporating a trailing knife and pen, that is especially suited for cutting pattern paper and up to 2mm cardboard.
2. Compatibality
�connectible to common cad software, widely used for design and manufacture of footwear, apparel, suitcases, bags, lamps and automobile leatherwares.
technical parameter
available model rzcam-0906a
rzcam-1209a
rzcam-1509a
rzcam-1512a
rzcam-1812a
working area
910*620mm
1200*920mm
1500*920mm
1500*1200mm
1800*1200mm
cutting materials
paper, cardboard, plastic board, rubber board, fiber sheet (up to 2mm)
working performance
cutting speed: 900mm/s (max.)
cutting thickness: 0.5-2mm
mechanical resolution: 0.07mm
blade and pen type blade: wolfram steel;
pens: water-based fiber-tip, oil-based ballpoint, disposable ink pen.
mat. Hold-down method
vacuum suction
software resolution
0.025mm 0.01mm 0.1mm optional
interface
standard parallel port or serial port
command system
hp-gl and gp-gl compatible mode
power consumption machine: 200w ac 220â±10%,50hz
vacuum pump: 1100w ac 220â±10%,50hz
feeding mode
feeding by hand.
