Paper Handkerchief Packing Machine - (single Bag)

Detailed product description
paper handkerchief packing machine,packing machine, packaging machinery, wrapping machine
(dc-phpm-1) automatic individual paper handkerchief packing machine
i. Introduction
model name: dc-phpm-1

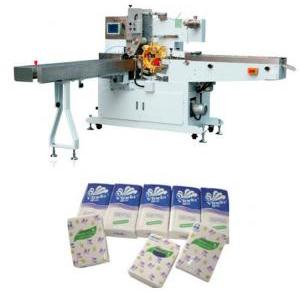

this machine uses plastic packing film to pack the standard handkerchief tissue, mini type handkerchief,rectangular objects, as the picture shown above.
ii. Function and features
1.overall operation controlled by mitsubishi plc, large touch panel screen and stepping motor.
2.equipped with automatic trouble tracking and alarm system.
3.omron photoelectric tracking system with high precision.
4.driving system equipped with advanced frequency inverter and variable speed control, the periodical location implemented by precise plane dividing box.
5.periodical lubricating system with automatic lubricant filling to significantly prolong service life.
6.specific static resistance technology available to ensure more stable packing performance.
7.intelligent temperature controller available to control the temperature as desired.
8.synchro punching for the tearing opening of packing film of the paper towel allowable to configure automatic punching device with various shapes of tearing openings.
9.letters such as production date and batch number can be printed automatically and adjusted up and down to optimized position.
10.synchro sticking the tearing opening tape for the outer packing delivers to further reduce the labor cost.
iii.technical parameters
model
dc-htpm-1
size of bag(mm)
l70-110
w50-55
h22-28
standard paper handkerchief
spec.:106mm *53mm *26mm, number: 10 sheets
mini type paper handkerchief
spec.:76 mm*53mm*26mm, number: 10 sheets
packing film dimensions（mm）
standard paper handkerchief :150mm
mini paper handkerchief :116 mm
capacity (packages/min)
25-90
dimension (l×w×h)(mm)
3660×2750×1920
air pressure (mpa)
0.3-0.4
overall weight (kg)
1500
packing material
cpp、pe、pe/cpp、pt/pe etc two sides heat sealing film
power of the main electrical machinery
1. 1kw
power of outputs and side seals electrical unit
0.18w
power of generates heating machine
3. 4kw
power support
380v, 50hz (for your reference, it depends on the power situation in your place)
