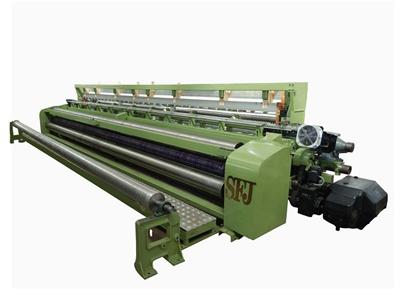

Paper Making Woven Press Felt Rapier Loom

It is suitable to weave paper making woven press felt ( sheet screen),the whole machine work stable which possess the functions of single construction, easy operated,manpower saving ,low noise, higher effciency and better cost performance.
Technical parameters:
　　1、Range of Ply yarn: 0.2×4－0.2×6mm; Range of monofilament: 0.2-0.5mm
　　2、Weft density:Max.80-100picks10cm.(Non plain woven)
　　3、Reed Width: 5.5M－7.2M.
　　4、Max.Speed: 65rpm.
　　5、Total Power of machine:4Kw－5Kw.
　　6、Weight:7.5－9.5T.
　　7、Overall Dimension(mm):Depth×Height: 5000×2200
　　　　　　　　　　　　　　Width:reed width + 2M
Main Construction:
　　1、Framework: the main wallboard is adopted steel panel construction, the complete machine
　　　　combined with fissions.
　　2、The main drive:single side motor driven,electromagnetic clutch.
　　3、Weft Insertion Mechanism:double sided servo motor rapier weft insertion system.
　　4、Shedding mechanism:top setted positive dobby system, 8 pieces of heald frames.
　　5、Beating-up mechanism: multi-segment combined crank four-linkage weft beating,max beating force:
　　　　0.6TM.
　　6、Take-up mechanism: three rollers or porcupine positive take up system.
　　7、Let off mechanism: negative let off, single warp beam, separate disc warping system.
　　8、Fabric rolling mechanism:external central fabric rolling system.
　　9、Controlling mechanism:adopting computerize control system, all necessary data can be setted.
