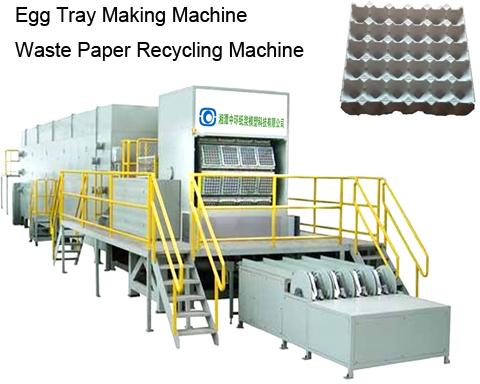

Paper Pulp Egg Tray Making Machine 4000pcs/h

We are offering paper pulp egg tray making machine. Product description
1, about this type
capacity: 4000pcsh brand : xiangtan zh
part no. E4000b forming type:rotary
place of origin: xiangtan city,hunan province,china voltage: 380v
process type: pulping mold fuel: lpg,natural gas or diesel oil
output products: egg traycarton, fruit tray,coffee tray and some other industrial packages
2, main equipment and specification
system equipment description
pulping system conveyor 3kw,width:1000mm length: 7100mm
hydrapulper 3m³,55kw
vibration screen 1.8 m², 4kw
agitator 3kw,mixing diameter :1600mm
concentration meter the concentration range is 0.5% --- 6.0%
forming system rotary forming machine 8 forming platens,a transferring platen,each platen can place 4 molds, totally can hold 36 molds
automatic drain system 7.5kw,include including air-water separation tank,auto drain tank and so on
drying system multi-drying line 30kw,outline dimension: 14000x2120x1700mm
control system for main machine plc,touch screen to control
stacking system stacker meanwhile height limit pressor to put trays in good order
remark mold forming platens are made by stainless steel while mold made by aluminium
3, auxiliary equipments
except the main equipment that referred above, there are some other equipment necessary for a total line, customers can choose to buy it themselves or from our side.such as the stock pump, high pressure water pump,water-ring pump,air compressor,fliter,air storage tank, refrigerated air dryer and so on.there small equipment comparised to main equipment and can be easily found somewhere.
