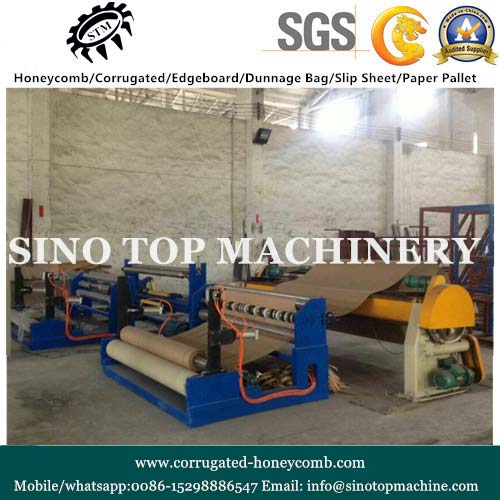

Paper Slitter

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Based in Suzhou, China, we are a reputed manufacturer, exporter and supplier of Paper Slitter. The Paper Slitter has a maximum speed of 25m/min and consumes a power of 85KW. The slitter has the range of length varying between 100mm-9999m with the maximum thickness of 5mm. The product has the size of 37000*2500*2350mm³. We check the product against all quality parameters and provide the product at market leading prices.

View More Details

Send Enquiry

Specifications

Model	Zfq-1200/1600/1800
Max. Unwinding Roll Weight, Kg	1500 Kg
Max. Unwinding Roll Width, Mm	1200/1600/1800
Min. Unwinding Roll Width, Mm	500 Mm
Max. Unwinding Roll Diameter, Mm	1300 Mm
Unwinding Inner Roll Core Diameter, Mm	76
Max. Cardboard From Unwinding Roll Thickness, Mm	0.8mm
Min. Cardboard From Unwinding Roll Thickness, Mm	0.1 Mm
Max. Cardboard From Unwinding Roll, G/m2	600 Gsm
Min. Cardboard From Unwinding Roll, G/m2	100 Gsm
Unwinding Speed, Revolutions-1 Or M/min (mechanical Shaft Speed)	1400 Rpm
Cutting Accuracy By Width, Mm +/-	1 Mm
Max. Distance Between Disk Knifes, Mm	1200 Mm
Min. Distance Between Disk Knifes, Mm	40 Mm
Max. Winding Roll Weight, Kg	1500 Kg
Max. Winding Roll Width, Mm	1200 Mm
Min. Winding Roll Width, Mm	40 Mm
Max. Winding Roll Diameter, Mm	1300 Mm
Winding Inner Roll Core Diameter, Mm	76 Mm Inner Core Diameter
Winding Small Rolls Quantity (simultaneously)	25
