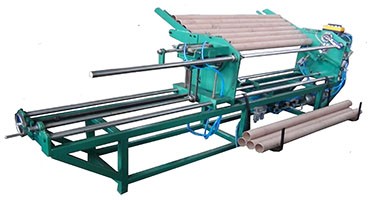

Paper Tube Cutting Machine

₹ 7.24 Lakh / Set

MOQ1 Set(s)
5, Auto feeding, cutting tubes and drop material, realize unmanned operation.Cutting thermocouple paper tubes (industrial paper tube)
3, Adopt micro motor, low power and noise, energy saving.4, Instrument is easy to move, very convenient for workshop management.
1, Adopt small circular high-speed blade to cut paper tube.2, The blades have fine-turning device, fast and convenient to set
Automatically Paper tube end cutting machine.Cut paper tube into small diameter and length paper tubAutomatically paper tube end cutting machine-ECM 16-102
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Specifications automatically paper tube end cutting machine.cut paper tube into small diameter and length paper tubes,high precision and speed automatically paper tube end cutting machine-ecm....

Product Details

Specifications
automatically paper tube end cutting machine.cut paper tube into small diameter and length paper tubes,high precision and speed
automatically paper tube end cutting machine-ecm 16-102
application:
cutting thermocouple paper tubes (industrial paper tube)
features:
1, adopt small circular high-speed blade to cut paper tube.
2, the blades have fine-turning device, fast and convenient to set
3, adopt micro motor, low power and noise, energy saving.
4, instrument is easy to move, very convenient for workshop management.
5, auto feeding, cutting tubes and drop material, realize unmanned operation.
Technical parameters:
min cutting tube length: 300mm
max cutting tube thickness: 10mm
max cutting tube length: 2500mm
operator: 1person control one set
min cutting tube diameter: 16mm
blades quantity: 2set
max cutting tube diameter: 102mm
motor power: 0.75kw
working efficiency: 20timesmin
