Contact SupplierRBEFB-W Electromagnetic water flow meters are based on electromagnetic flow (EMF) technology and provide measurement of a wide flow range.Special for Irrigation Magmeters.

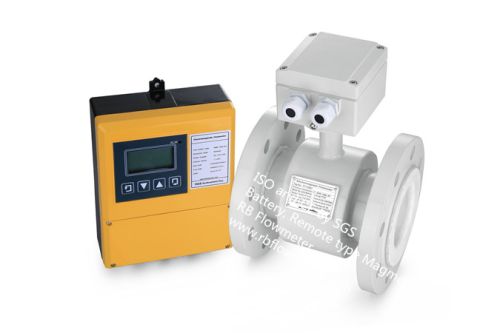

RBEF-W Battery Magnetic Water Meter Specification
supporting meter size: DN3 ~ DN800
Accuracy: ± 0.2%, ± 0.5%, ±1%
Measurement range: 0.05 ~ 15m s
Measuring medium (conductivity):> 20μs cm
Medium temperature: -10 ℃ ~ 160 ℃
Ambient temperature: -20 ℃ ~ 50 ℃
Humidity: ≤95% (relative humidity)
Protection grade: IP65, IP67, IP68
Power Supply: 3.6V built-in lithium battery, continuous working time 3--6 years
Display: large-screen LCD device for displaying instantaneous flow velocity, forward reverse cumulative total and alarms
Output signals: pulse output 0.0001-10m3p, frequency output 1-5000Hz (passive optocoupler output)
Recording data: total accumulated flow
System alarms: Fluid empty pipe detection alarm, excitation current detection alarm, battery capacity detection alarm;
Scaled output signal: pulse per unit volume flow
Communication: RS485, GSM GPRS CDMA wireless data transmitting
