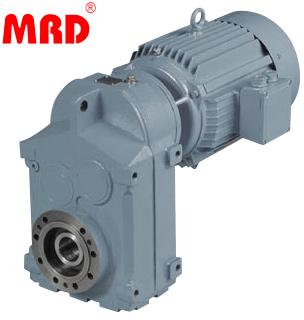

Parallel Shaft Helical Gear Reducer

We are offering f series parallel shaft-helical gear reducer (f37-f157).
type: f/fa/ff/ffa/ffab14
transmission ratio: 3.97-228.99
maximum torque: 820
our extra-slim parallel shaft helical gear motors are the perfect solution when space is limited. The many different sizes and designs ensure that the gear motors can be used in a wide variety of applications even under the most unfavorable conditions. Mrd-asia drive's parallel shaft helical gear motors are typically used in conveyor and materials processing applications. You can choose from foot-, flange- or shaft-mounted options. Reduced backlash parallel shaft helical gear units are also available on request for precise positioning tasks.
mounting configuration
multiple mounting options including foot, flange or shaft mounts.
suitable for mounting in any position.
available as a gear motor or a gear brakemotor.
integral torque arm.
optional features
hollow or solid output shafts available in metric sizes.
double output seal design consisting of patented bi-helix inner seal made of viton and double-lipnitrile (buna-n) outer seal.
severe duty protection.
long-term storage protection.
50 hz motors for worldwide use.
motors with high cycling capacity fail-safe brake.
forced cooling for low frequency motor operation.
thermostat or thermistor protection.
reducers
gears manufactured from certified steel, heat treated to a case hardness of 58-62 rockwell c for long gear life.
finished ground or shaved gear teeth to assure maximum mechanical efficiency (1-1/2% loss/gear stage) with low noise and heat.
high capacity anti-friction bearings submerged in oil and splash lubricated for optimum load carrying capacity and long life.
double output seal design consisting of patented bi-helix inner seal made of viton and double-lipnitrile (buna-n) outer seal.
captured keys on output shafts. Gear cases made of high strength gray cast iron, sae class 30.
high cross-section modulus design, rugged monobloc design for maximum rigidity.
available with inch dimension, hollow or solid output shafts.
