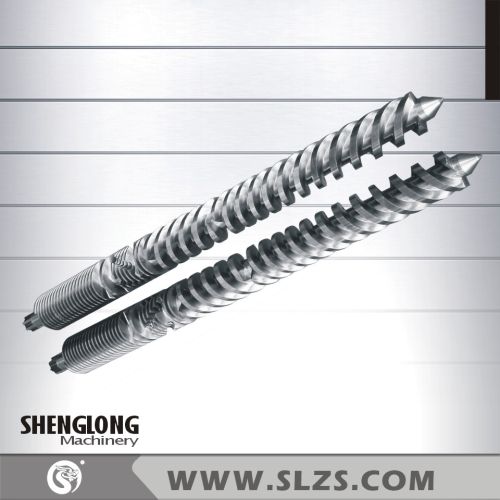

Parallelt Twin Screw Barrel

₹ 91,000 / 3000 3000 Set

MOQ1 Set(s)
Surface RoughnessRa0.4um
Nitride Brittleness≤Grade One
Chromium Coating Thickness0.025~0.10mm
Depth of Nitrated Layer0.5-0.8mm
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 10 Years
Nature of Business Manufacturer
Year of Establishment 2000

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Surface RoughnessRa0.4um
Nitride Hardness:950-1050HV
Chromium Coating Thickness0.025~0.10mm
Alloy Hardness:HRC58-65
Alloy Depth0.8mm-3.5mm
Depth of Nitrated Layer0.5-0.8mm
Screw Straightness0.015mm
Nitride Brittleness≤Grade One

We are offering parallel twin screw and barrel for plastic extruder
screw diameter : 4590mm 55110mm 65132mm 80156mm 92188mm.
Application : water pipe. Drainage pipe. Label printing film. Shrinkable film.frame profile
plastic processed : pvc pp pe hdpe lhdpe etc
technical parameter
nitride case depth
0.5mm-0.8mm
nitride hardness
950-1050hv
nitride brittleness
≤grade one
surface roughness
ra0.4um
screw straightness
0.015mm
alloy hardness
hrc58-65
alloy depth
0.8mm-3.5mm
chromium coating thickness
0.025~0.10mm
material & technologies
skd61(h13)
quality 38crmoaia (41craimo7)
gr12mov
quality duplex stainless steel
42crmo
quality powder metallurgy materials
40cr
hard metal coldthermal spraying technology
zinc 3# steel
advanced nitriding technology
anti-corrosion and wear-resisting duplex metal spraying technology
technological process
1.rough machining
2.quenching and tempering
3.finish machining
4.nitriding
5 sprey conating bimetallic
6.screw polishing
