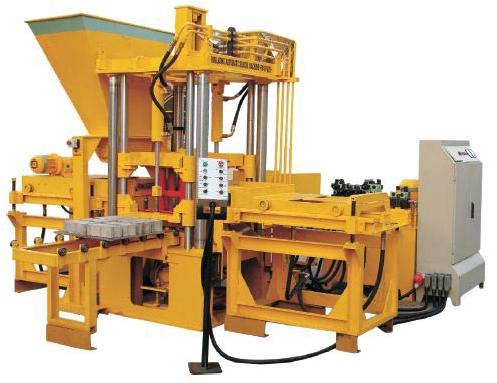

Concrete Block Making Machine (PBM PLUS), Power : 80kw, Capacity : 100000 PCS

Listing ID #817340

Automatic Concrete Block Making Machine (PBM PLUS) is capable of manufacturing Interlock Paving Blocks, Building Blocks, Kerb Stones and various other kinds of products suitable for the Construction Industry. This Concrete Block Making Machine has been developed using our extensive knowledge and experience in the manufacture of Blocks and related Machinery.
All the Products manufactured in this PBM Plus Automatic Concrete Block Making Machine are of the highest standards and can meet International Quality requirements. The Machine is of robust and sturdy construction designed for simplicity and east in operation and maintenance. This Machine is simple to operate, even with semi skilled persons in spite of being fully automated. The material feed box with levelling device will ensure that the material is uniformly fed in the Mould cavity.
Additional Feed Box for Face Mix is provided in this PBM PLUS Automatic Concrete Block Making Machine. The empty Pallets are fed automatically after each cycle and the Pallets with the manufactured Blocks are discharged automatically. The powerful Hydraulic Unit is specially designed particularly for this PBM Plus Automatic Concrete Block Making Machine and is capable of working continuously under harsh working conditions. The electrical unit comprises of PLC Control with an Operator Panel for various adjustments depending upon the type of products being manufactured in the Machine. An exclusive Operator Panel is provided to help the Operator to monitor the production.
The main moving parts of the Machine are robustly designed and require very little lubrication or maintenance.  All these features with the Parijatha experience and Stamp of Quality makes the Machine invaluable asset ensuring years of trouble free operation and productivity.
Salient Features :

• Superior and Proven design with very sturdy construction, long life and east of maintenance.
• Completely Automatic cycle which includes feeding of pallets, discharge of raw material into the mould area as per exact requirement, consequent discharge of face mix and ejection of the pallets with the finished products.
• Fully synchronized vibration, pressing, de-moulding operations using the latest PLC Control without the need for Operator Control.
• Specially designed Hydraulic Power Pack for Superior pressing and Smooth working of various operations.
• Complete Electrical and Mechanical Interlock Systems provided for Safe working conditions.
• All moving parts designed to work with minimum lubrication and maintenance for trouble free working of the machine.
• Unique latest design for faster mould change, accessibility to all parts for easy maintenance.

Specifications

• Pallet Size : 600 x 700mm
• Production Capacity : 1200 cycles per 8 hour shift
• Power Required : 22 HP
