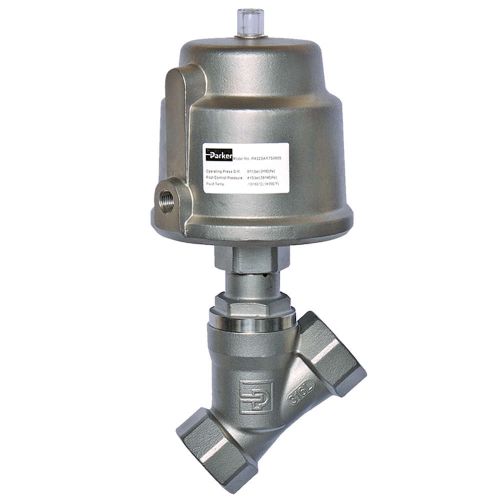

Parker 2-Way, Angle Body, Normally Closed, 2" Valves

Parker 2-Way, Angle Body, Normally Closed, 2" Valves are capable of handling corrosive solutions at high temperature up to 356 F. They have a durable aluminum or stainless steel actuator housing, offer over seat or under seat configurations for all flow applications, and conform to 949CE specifications.
Orifice Sizes: 1.77"
Flow Factor (Cv): 58.3
Maximum Operating Pressure (psi): Up to 232 psi for air, inert gasses or liquids; and 130 psi for steam
Minimum Pilot Air Pressure (psi): 43.5
Actuator Size: 63, 80 or 100 (mm)
Actuator Size: 32, 40 or 50 (mm)
Actuator Housing Material: Aluminum or 304 Stainless
Media: Air, inert gasses or steam - Flow over seat; Liquids (Anti-water Hammer) - Flow under seat
Max Media Temp.: 365 F
Applications:
• Food and Beverage Processing
• Water Technology & Treatment
• Cooling systems on injection molding machines
• Pharmaceutical & cosmetic industry
• Chemical Process technology
• Refrigeration & Cooling heat exchangers
• Water applications: Mining, Cement Concrete Systems, Pulp & Paper
• General industrial applications of aggressive fluids
• Industrial Laundry Equipment
