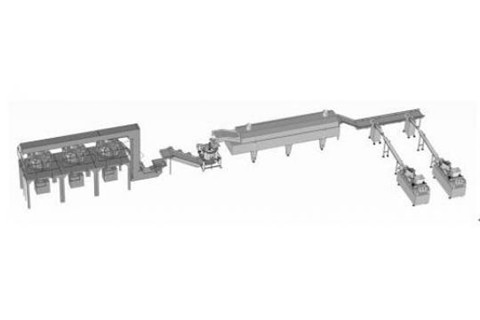

Pasta Production Line

Product process
product name: frying pasta
water content: 18%
production process: feed fry deoiling discharge
frying: about 80 second
energy: electric
output: 6 ton (8 hour, 750kghour)
this production line can meet all the equipments required for the frying pasta production.
it can complete pastries forming, rubbing strip, cutting, frying, oil removing, cooling and
package process. Frying machine use electromagnetic heating process, electromagnetic
directly use on the cook pan. The material on the pan base is self-heating and can heating
the fry oil automatically. Because the oil tank structure is simple, easy to clean, lower level, the oil capacity is lower, so the utilization ratio is very lower.
this set of equipment can meet the needs of the whole production process this crisp, complete surface pressure, rubbing, slicing, frying, deoiling. Cooling, packaging and other processes. Frying machine using electromagnetic heating, electromagnetic grams directly to the bottom of the pot, the pot bottom material self heating heating frying oil. The oil tank has simple structure, convenient cleaning, shallow oil groove, low oil content, and the utilization rate of the frying oil is very low.
The production line specification:
model number: cmyz80600
outer dimension: 6050*1570*1970mm
effective dimension: 800*4500mm
power supply: 380v 50hz
motor power: 120kw
total weight: 2850kg
