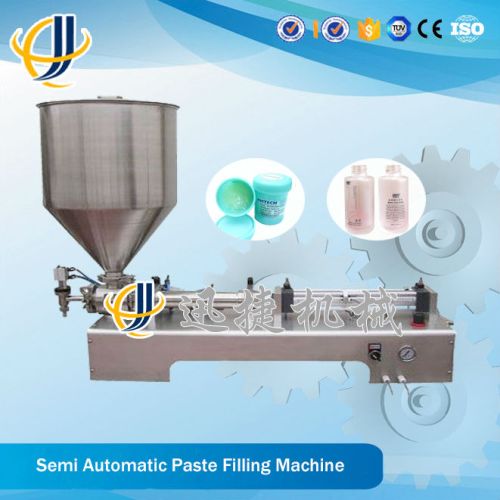

Paste Filling Machine, Brand Name : XUNJIE

We are offering Product Application
This model is suitable for pharmaceutical, cosmetic, food, pesticides and special industries, is an ideal equipment for filling honey, cream etc such paste material.
Technical Specifications
Voltage: 220110V 5060Hz
Power: 10W
Rated pressure :0.4-0 .6 MPa
Filling speed :10-30 bottles min head
Filling precision: � ± 0.5%
Filling range :5-5000ml
Principle Features
1.DGSGF paste filling machine is semi-automatic piston type developed by our company, filling a series of high concentrations of fluids. It is through air cylinder to drive a piston and transfer--valve�s Three Contacts principle to extract and to split out the highly concentrated material, and by magnetism-reed switch to control air cylinder�s travel, then can adjust the filling volume.
2.This device is simple and reasonable in structure, easy to understand, with high accuracy.
3. Filling volume and filling speed can be arbitrarily adjusted with high filling accuracy.
4.Pneumatic part adopts Germany FESTO and Taiwan AirTac pneumatic components.
5. Filling head adopts anti-drip, anti- drawing and lifting devices.
