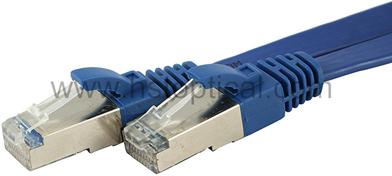

Patch Cord, Brand Name : HST

Hst rj45 patch cords avalilabe types: cat5e patch cord, cat6 patch cord, cat6a patch cord, cat7 patch cord, utp patch cord, ftp patch cord, sftp patch cord, copper patch cord, cca patch cord and lan cable.
High performance rj45 patch cord
conductor:24awg/26awg copper,cca,ccs 8*7*0.12, 8*7*0.18 etc
insulation:0.92mm+/- 0.06 hd/pe
pairs:4 pairs
shield: pvc lszh
packing: 1m,2m,3m,5m,7m,10m,15m,20m..100m
anylenght is availabe
temperature range: -20 up to +75c
conductor resistance: max.9.38 ohm/100m
resistance unbalance: max. 2%
insulation resistance: max. 150 ohm/km
mutual capacitance: max. 5600pf/100m
capacitance unbalance: max. 330pf/100m
impedence: 100+/-15
spark test:2000v
velocity of propagation: 67%
specification:
specification: 4p+f
rated temperature: 60°c or 75°c
unshielded twisted pairs:
conductor: 26awg or 24awg stranding or solid bare copper
insulation: hd-pefiller: pe cross or fm-pe thin slice
rope: optional
jacket: pvc or lsnh
reference standard: yd/t1019-2001,iso/iec11801,ansi/tia/eia-568b,ul 444
print legend: cm or cmr
application:
1.lan network system
2.computer network distributin system
3.telecommunication network system
4.testing equipment system
5.catv system
