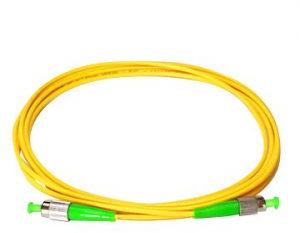

    PATCH CORDS

    PATCH CORDS

    Get Latest Price
    • Cable TypeSimplex or Duplex Zipcord
    • Strength of Coupling Mechanism (FOTP-185)33 N at 0° for 5 sec
    • Flex (FOTP-1)0.5 Kg at 25 cm, +90° to -90°, 100 cycles
    • Cable Assembly Length (<15 meter tolerance)-0/+10%
    • Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Radiant Technologies
    location Thane, Maharashtra
    View Number
    • calendar Member Since 5 Years
    • building Nature of Business Supplier

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    • Humidity (FOTP-5)90-95% at 40°C
    • Strength MemberAramid Yarn
    • Model(SM/MM/Armoured-FC/SC/LC/E2000 Simplex/Duplex)
    • Jacket Colour (Multimode: OM1 & OM2)Orange
    • Polish or Ferrule Interface TypePC, UPC, APC
    • MakeRadiant Technologies
    • Cable Retention (FOTP-6)50 N at 0° for 5 sec
    • Storage Temp.-40 ˚C to +85˚C
    • Outer JacketPVC or LSZH
    • Ferrule Concentricity< 1μm Other Ferrule Concentricity < 1μm
    • Cable Diameter0.9mm, 1.6mm, 2.0mm, 3.0mm
    • Cable Assembly Length (<15 meter tolerance)-0/+10%
    • Jacket Colour (Multimode: OM3 & OM4)Aqua
    • Cable TypeSimplex or Duplex Zipcord
    • Connector StyleSC, FC, ST, LC, MTRJ, E2000
    • LengthsStandard & Custom Lengths
    • Cable Assembly Length (<15 meter tolerance)-0/+100mm
    • Operating Temp-20 ˚C to +70˚C/+85˚c (armoured)
    • Flex (FOTP-1)0.5 Kg at 25 cm, +90° to -90°, 100 cycles
    • Jacket Colour (Single Mode: OS1 & OS2)Yellow
    • Durability500 cycles(0.2 dB max increase), 1000mate/demate cycles
    • Strength of Coupling Mechanism (FOTP-185)33 N at 0° for 5 sec
    • Twist (FOTP-36)15 N at 0° 5 turns, 10 cycles
    • Range of ModeSingle or Multimode
