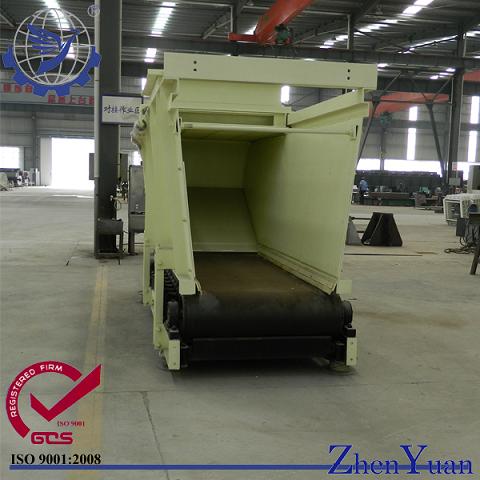

Patent Product Armored Belt Weight Feeder

Offering Zhenyuan patent product Armored belt weight feeder
Belt Feeder---
Zhenyuan patent product Armored belt weigh feeder is designed to handle a wide variety of bulk materials – from sluggish to free-flowing, crushed materials such as limestone, coal, gypsum, clinker and clay. Besides, the coal dust, cement and raw materials also can be included in. With groups of buffering idlers at the bottom of the running body where material drops,which protect the armored belt and wear---resistant belt without joint,extending their service life.
It has varieties of application range:
• iron ore & gold powder
• coal powder
• aggregates
• sand & grave
• chemicals
Features:
1. Running smoothly, fast speed, low noise, good explosion-proof function;
2. High efficiency, unparalleled large capacity compared with common ones (1000tons per hour)
3. Feeding capacity can be adjusted manually and automatically. Long-distance control is available through a frequency converter;
4. Small body, easy to install and replace spare parts, low cost on technical improvement, short working cycle and quick in effect;
5. Equipped with a anti-block device, which can eliminate air blocking and block up in the running body, promising a jam-free for material;
6. Reliable quality, stable function, more than 90% of the spare parts are common on the market, easy to maintain and repair.
7. Complete supporting devices, which guaranties its multifunction and perfect performance;
8. Groups of buffering idlers are mounted at the bottom of the running body where material drops, which protects the armored belt and the conveyer band, extending their service life.
Technical Parameters:
Technical Data
Model Power(kw) Voltage(AC V) Speed Adjustment
Mode Speed Scope Feeding Scope Weight
GLD800/5.5/S 5.5 AC380
AC660
AC1140
Manual 0.4-0.7 160-800 3700
GLD800/5.5/B Auto 0.42-0.7 480-800 3800
GLD800/5.5/S 5.5/7.5 Manual 0.6-0.1 400-2000 4200
GLD800/5.5/B Auto 0.2-0.1 1200-2000 4300
GLD800/5.5/S 7.5 Manual 0.2-0.1 660-3300 5200
GLD800/5.5/B Auto 0.6-0.1 1980-3300 5300
GLD800/5.5/S 11 Manual 0.3-1.5 880-4400 6200
GLD800/5.5/B Auto 0.9-1.5 2640-4400 6300
Service for our Coal Crusher Machine :
1. Pre-sale services
Act as a good adviser and assistant of clients; Enable them to returns on their investments.
2. Services during the sale
Respect clients; Devote ourselves to improving the total value
3. After-sale services
Provide considerate services to minimize clients' worries.
Welcome Your Inquiry About Coal Mine Machinery !
