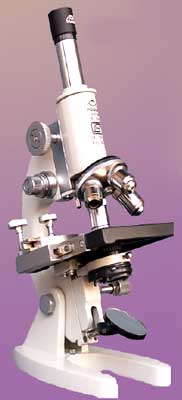

Pathological Microscope

Designed for years of rugged use, our Pathological Microscope is manufactured from the white solid body with high quality fully coated optical lenses. Our Pathological Microscope is widely used in pathological labs for various applications. Today, we are well reckoned as one of the remarkable Inclined Pathological Microscopes Manufacturers and Suppliers based in India.
Specification
Base : The contempary Horse Shoe hinged type base for easy inclination while observation liking.
Nose Piece : Quadrupple revolving nose piece.
Focussing Processor : Seperate Coarse condenser N.A.1.3 with up and down movement through rack and pinnon mechanism.
Mechancal Stage : Fixed stage 120mm x 120mm. Provided with precision X and Y movement of slide upto 50mm 75mm with graduated scale and verneir. The Specimen slide can be observed for larger area.
Illumination : Through reflector mirror adjustable as per requirements.
Note : There is a facility to attach substage lamp in place of reflector if need arises. The substage lamp works on 6v-20W or 220v-15W. Substage lamp M.No. SS-100x (SL)(Optional).
Objectives : 4/5x, 10x, 40/45x(SL), 100x (SL) Oil Immersion.
Eye Piece : 10x Wide field, 15x Huy.
Magnification :

• In 4x, 10x, 40x, 100x Oil Immersion
• 40, 60, 100, 150, 400, 600, 1000, 1500x
• In 5x, 10x, 45x, 100x Oil Immersion
• 50, 75, 100, 150, 450, 675, 1000, 1500x
