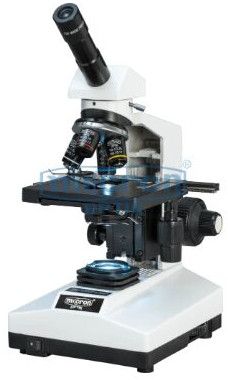

Pathological Microscope Model Mono Cxl

Get Latest Price

Mechanical Stage TypeBall Bearing Driven
Focusing TypeCo-axial Coarse & Fine
Nose Piece TypeQuadruple Ball Bearing
Viewing Head Rotatable360 Degree
Focusing Graduation1Div=.002mm
Supply TypeManufacturer
Preferred Buyer Location India only

Send Enquiry

Company Information

Microscopes-india

Gobind Nagar, Ambala, Haryana

View Number

Member Since 11 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Focusing TypeCo-axial Coarse & Fine
Viewing Head Rotatable360 Degree
Focusing Graduation1Div=.002mm
Mechanical Stage TypeBall Bearing Driven
Nose Piece TypeQuadruple Ball Bearing

VIEWING HEAD
AVAILABLE IN MONOCULAR, BINOCULAR AND TRINOCULAR VIEWING HEADS
STANDARD FEATURES
1. Viewing tube: As per Requirement
2. Head Rotatable at 360 degree.
3. Quadruple Ball Bearing nose piece with positive click stops.
4. Co-axial Coarse & Fine focusing Graduated to 1Div=.002mm.
5. With Ball Bearing Driven Mechanical stage for X&Y movement of slide.
6. Movable abbe Condensor N.A.1.25 with iris diaphragm with swingout filter holder.
7. Built in Illumination LED with intensity control. (Battery backup optional)
8. Steple Grey, chemical resistant, back-on finish.
9. Complete with Instruction Manual and dust cover.
10. Duly packed in styrofom packing.
OPTICAL COMBINATION
EYE PIECES: WF 10X
OBJECTIVES: 4X, 10X, 40X S/L, 100X S/L [Achromatic]
MAGNIFICATION: X40 – X1000
