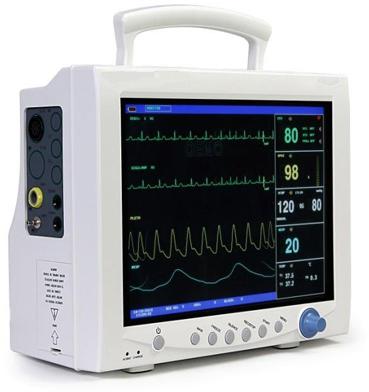

Patient Monitor M12b

Patient Monitor M12B
12 inch TFT; Resolution: 800*600
ECG, Spo2, PR, NIBP, RR, Temp
Function
* 6 display interface
* 720 hours trend data storage,12 hours waveform review
* Voice alarm
* Support wired and wireless networking
* Support software upgrade online
* ST segment can be adjusted
* Support nurse call system
*Specification
*ECG
Leads Mode; 5 leads; Ⅰ、Ⅱ、Ⅲ、Avr、Avl、Avf、V
Gain(mm/mV): 1/4,1/2,1,2,4
Scanning speed; 12.5mm/s、25mm/s、50mm/s
Frequency response: diagnosis 0.05-130Hz
Monitoring 0.5 – 40Hz
Operation 1.0- 20Hz
Heart rate range: 15-350 BPM
Heart rate accuracy:±1%
ST segment analysis:-0.8-+0.8Mv
ST segment accuracy:±0.02Mv
*NIBP
Measure and Alarm Range
Adult Mode
SYS 40 ~ 280 mmHg
DIA 10 ~ 220 mmHg
MEAN 20 ~ 240 mmHg
Pediatric Mode
SYS 40 ~ 220 mmHg
DIA 10 ~ 160 mmHg
MEAN 20 ~ 170 mmHg
Neonatal Mode
SYS 40 ~ 135 mmHg
DIA 10 ~ 100 mmHg
MEAN 20 ~ 110 mmHg
Static pressure range: 0～300mmHg
Static pressure accuracy: ±3mmHg or 2%
Resolution: 1mmHg
Protection mode; dual over voltage protection
*SPO2
Measure range: 1-100%
Accuracy: ±2% (70-100%）
Resolution: 1%
*Pulse rate
Measure range: 20-300 BPM
Accuracy: ±2 BPM
Resolution: 1 BPM
*Temperature
Channel; 2
Measure range: 0-50 ℃
Accuracy: ±0.1 ℃
Resolution: 0.1 ℃
*Respiration
Measure range; Adult 0～120BrPM
Pediatric/ Neonatal 0～150BrPM
Accuracy: ± 2%
Resolution: 1 BPM
*IBP(optional)
Accuracy (no sensor); ±2%or1mmHg
Band width: Normal mode: DC～40Hz
Smooth mode: DC～12.5Hz
*Pulse rate
Measure range: 20-300 BPM
Accuracy: ±2 BPM
Resolution: 1 BPM
*Temperature
Channel; 2
Measure range: 0-50 ℃
Accuracy: ±0.1 ℃
Resolution: 0.1 ℃
*Respiration
Measure range; Adult 0～120BrPM
Pediatric/ Neonatal 0～150BrPM
Accuracy: ± 2%
Resolution: 1 BPM
*IBP(optional)
Accuracy (no sensor); ±2%or1mmHg
Band width: Normal mode: DC～40Hz
Smooth mode: DC～12.5Hz
*ETCO2
Measure range: 0% - 13%
Resolution: 1 mmHg
Accuracy : ±2 mmHg @
Respiration: 3 – 150 bpm
Depth of anesthesia (optional)
EEG sensitivity ±400μV
Noise ＜2μVp-p , ＜0.4μV RMS,1-250Hz
CMRR ＞100Db
Input impedance ＞50Mohm
Sample rate 2000 samples/sec.(14 bits equivalent)
CSI and update 0-100.Filter 6-42Hz,1 sec.update
EMG 0-100logarithmic.Filter75-85Hz,1sec.update
BS% 0-100%.filter 2-42 Hz,1 sec.update
*Option
Lead-acid battery (extermal plug)
Recorder (built-in)
IBP
ETCO2
monitor depth of anesthesia
anesthesia gas monitoring
oxygen monitoring
