Patient Monitor, Warranty : 2years

Patient Monitor
New multifunctional monitor with 12 '' display, gas module, ECG analysis and enhanced network capacity
Patient Monitors UM 300 are essential for surgeries, anesthesiology departments, intensive care units, maternity wards and patient care during transport
•
•
•
•
________________________________________
________________________________________
________________________________________
Description

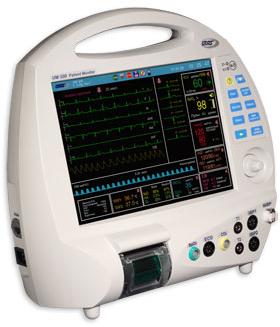

A NEW GENERATION OF PORTABLE PATIENT MONITOR
UM 300 is a new multi-parameter portable patient monitor with high resolution color display and multi-gas module. UM 300 is ideal for operating rooms, intensive care units, recovery rooms and patient care during transport. Monitor can be connected to the Central Station to make monitoring information available throughout the hospital.
Features
• • Unique networking capacity which allows viewing hospital network data, digital images, lab results, medication guidelines etc;
• • High brightness, wide viewing angle, colour 12.1'' display;
• • Expanded monitoring capabilities: ECG, HR, pulse oximetry, NIBP, respiration rate, temperature, invasive blood pressure, cardiac output, CO2, N2O, O2 and 5 anesthetic agents;
• • Simultaneous display of up to 8 real-time waveforms;
• • Advanced digital signal processing;
• • Alarm supervision of all vital signs;
• • Multi-level alarm management;
• • 12-lead ECG;
• • Arrhythmia and ST segment analysis;
• • Heart rate variability analysis;
• • Up to 96 hours trend for all measured values;
• • 60 seconds full-disclosure waveforms review;
• • Up to 4 hours of internal battery operation;
• • Drug dose and infusion rate calculator.
• * Touch screen
Specification
DISPLAY
Size: 12.1'' / 30.7 cm diagonal
Type: bright colour TFT
Resolution: 800x600 dots
Number of traces: up to 8, user selectable
ECG
Leads: I, II, III, aVR, aVL, aVF, V1-V6
Sweep Speed: 6.25; 12.5; 25 и 50 mm/s
Sensitivity: 5; 10; 20 mm/mV
Defibrillator protection
Pacemaker detection
HEART RATE
Range: 15 -350 BPM
Resolution: 1 BPM
Accuracy: ± 1 BPM
SpO2
Range: 1 -100%
Resolution: 1%
Accuracy: ± 2% (70-100%) 3% (40-70%)
Pulse rate range: 15 - 350 BPM
Probes: Adult, neonatal
Accuracy: ± 2 BPM
TEMPERATURE
Number of channels: 1 or 2
Range: 0 - 45°C
Accuracy: ± 0.1°C (30-42 C)
Probes: YSI 400 (Rectal, skin)
RESPIRATION RATE
Method: Impedance
Range: 0-150 1/min
Accuracy: ± 1/min
Apnea time interval Yes, user selectable
NIBP
Method: Oscillometric
Range: 10 - 280 mmHg (adult), 10 - 140 mmHg (neonatal)
Modes: Manual, automatic, STAT
Cuff: Adult, pediatric or neonatal
Measuring intervals: From 2 to 480 min
INVASIVE BLOOD PRESSURE
Number of channels: up to 4
Transducer sensitivity: 5.0 μV/V/mmHg
Range: -40 to 300 mmHg
Accuracy: ± 1 mmHg
CARDIAC OUTPUT
Method: Thermodilution
Range: 0.1-20 l/min
Resolution: 0.1 l/min
Accuracy ± 0,1 l/min
Display: Cardiac output, cardiac index, blood and injectate temperatures
EtCO2 (mainstream and sidestream)
Method: Nondispersive IR absorption
Range: 0-150 mm Hg
Accuracy: ± 2 mm Hg (0-40 mm Hg )
Respiration rate range: 0-150 1/min
MULTI-GAS MODULE
Method: Infrared absorption
Gas: CO2 , N2O, O2 , Hal, Iso, Des, Enf, Sev
Oxygen sensor: galvanic or paramagnetic
Range: O2 0 -100%
CO2 0-25%
N2O 0-100%
Hal, Iso 0-8%
Enf, Sev 0-10%
Des 0-20%
RECORDER
Paper wide: 58 mm
Speed: 12.5; 25; 50 mm/s
Formats: Waveforms, graphs and tables
Trace: 2 or 3
Internal battery: Rechargeable, 4 h operation
Output: LAN Ethenet, WLAN WiFi.
Dimensions: 370x350x150 mm (WxHxD)
Weight: 4.2 kg (with gas module and
battery)
