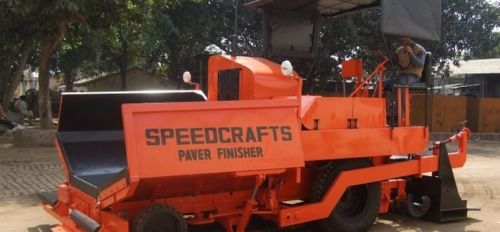

Paver Finisher for Road Construction

Hoppers have low dump clearance to handle all type of trucks. The wings are raised or lowered hydraulically to give a smaller overall width for transportation and for self-cleaning action during feeding of the asphaltic concrete onto the conveyor. Twin bar conveyors are provided to feed the material from hopper on to the screws (augers). The conveyors can be independently controlled. The asphaltic concrete flows from the main hopper into another hopper containing the augers. These augers are adjustable to cover the full width of the paved surface and each side has independent control. Initial compaction of the material is effected through the optional tamper. The tamper is actuated by means of eccentric journals mounted on sturdy roller bearings. A heated, fully floating, hydraulically operated and vibrating screed is provided, covering the full length of the paved width. It ensures a predetermined thickness of the asphaltic concrete layer by striking off the excess material. The screed is adjustable for height and camber. All controls are provided within easy reach of the operator from a comfortable driving seat.
