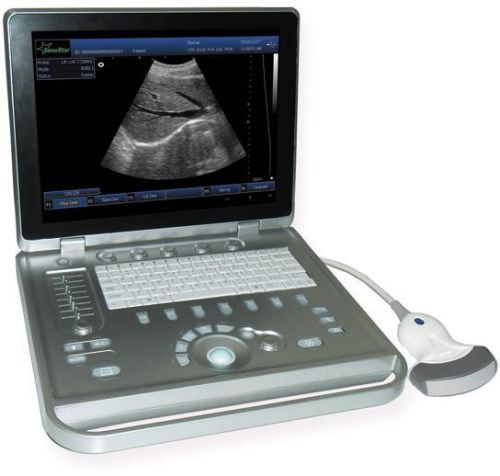

Contact SupplierWe are offering ss-9 pc based laptop ultrasound b scanner.
specification:
-maximum scanning depth: max. 250mm
-multi-frequency: 5 segment frequencies
-cine loop: max. 1024 frames
-scanning mode: b, 2b, bm, m, 4b, 9b, zoom;
-real-time zoom on b mode
-image gray scale: 256 level gray scale
-image processing: pre-processing, after-processing, dynamic range, frame rate, line average, edge;
enhancement, blackwhite inversion; gray scale adjustment, contrast, brightness, γ revision.
-gain: 0-100db; time gain control(tgc): 8 segment adjustment, b, m adjustment separately.
-measurement and calculation(human):
b mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
m mode: heart rate, time, distance, slope and stenosis;
gynecology measurement: uterus, cervix, endometrium, lr ovary;
obstetric: gestation age, fetal weight, afi;
cardiology: lv, lv function, lvpw, rvawt;
urology: transition zone volume, bladder volume, ruv, prostate, kidney;
small parts: optic, thyroid, jaw and face.
veterinary: cattle: bpd, crl, td; horse: ga; dog: gs; cat: hd, bd; sheep: bpd, crl, td
-supported output apparatus: u-disk, laserink printer, video printer, vga
-zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-image store: by hardisk or usb disk
-3d image function(function): can get rebuilt 3d image by any probe
-work time by built-in battery: about 5 hours
-monitor: 15 inch color led screen
-probe connector:2
-dimension: 362mm×340mm×60mm
-weight: around 4.8kg
standard configuration:
one main unit, one convex probe(3.5mhz), one power adapter.
optional:
linear, trans-vaginal, micro-convex,rectal probe; bag; trolley; laser printer.
