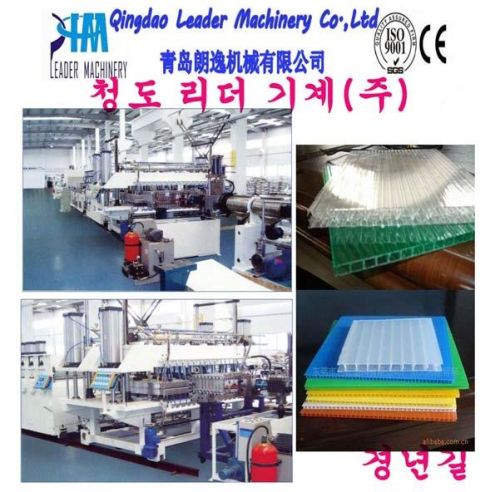

Contact SupplierWe are offering pc pp hollow grid sheet production machine.
1.ce iso certification
2.own rd team
3.good quality and professional services
part 1 introduction:
this pc hollow sheet extrusion line realizes continuous production of pc hollow grid sheet, which is applicable to construction decoration, advertisement collocation, and noise insulation of highway as well as packaging. It is characterized by light weight, high intensity,high transparency dampproof, and anticorrosion.
the technology of hollow sheet die with co-extrusion feed block to get uv+pc+uv, uv+pc hollow sheet can save 30% uv on the surface.
part 2: sheet spcifications:
sheet width: 1000mm- 1220mm-2100mm-2300mm,
sheet thickness is 2mm-4mm-6mm-8mm-10mm-12mm.
part 3: this line consists of :
item
description
data
1
sj12035single screw extruder
1 set
2
screen exchanging unit
1 set
3
melt pump
1 set
4
sj4530 single screw extruder for uv layer
1 set
5
dispenserdivider
1 set
6
t-type die head
1 set
7
vacuum calibrating board
1 set
8
cooling table
1 set
9
the first haul off machine
1 set
10
3000mm oven
1 set
11
corona treating unit
1 set
12
cooling table
1 set
13
the second haul off machine and edge cutting machine
1 set
14
protective film coating machine
1 set
15
tranverse cutting machine (length-settled)
1 set
16
4000mm discharge table
1 set
17
eletrical cabinet
1 set
part 4: applications:
pc hollow sheet is widely used in construction sunroof in buildingshallsshopping centerstadiumpublic places of entertainment and public facility; ring shield of bus stationgaragespergolascorridors; noise barriers for highways and urban elevated road
